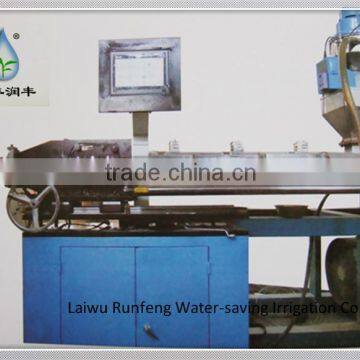

Drip Irrigation Pipe Production Line Machine for irrigation belt production

The inline flat drip tape production line is designed and manufactured by Shandong Runfeng Water-saving Irrigation Co,. Ltd. Upon 20 years experience of making drip irrigation product and by attracting technique on such machine from home and abrod ,Bye use of electric control wiring commonly used in the world, this plant turns stable,reliable and renewableand has high automation.

Dropper Identifying Equipment

Upon effect of centrifugal force ,the recoganition tunnel can recognize inline droppers automatically.Cooperated by compressed air ,the droppers can be driven into the tunnel with correct direction .The device is equipped with photoelectrical switches ,tunnel, PLC control.

Forming Machine

A servo motor is used to drive a belt which can bring the droppers in a tunnel into an accurate place for adherence.

The drip irrigation tape is made of precise recipe of material, processed by use of delicated screw and barrel of Jinhairuo brand,hard tooth face reducer of Jiangwei brand ,and technique of forming head from Italy ,which enjoy stable extrusion capability, uiform plasticization and credible quality.Through accurate vacuum and water level control, tape is thermally  formed with droppers sticking accurately on its wall, It is cooled by water circulation ,consuming less water with less operating cost ,It has also special device for anti-rotation of pipe.

Traction Punching Device

With different speed control to the double draggers,the hole punching has become very stable .Equipped with an optoelectronic switch imported for detection signal together with mechanical adjustment,the accuracy of hole punching can be ensured.

Double Location Winding Device

This device adopts PID control circuit, detect and change rolls automatically,thus having improved quality of the product.

Electric Control Device

Full automation for production process can be achieved by use of human-computer interface of Taida brand of Taiwan and PLC control,By use of ethernet module, the supplier can detect, upgrade and maintain the equipment.

Water Treatment Units

This unit can produce pure water which can improve quality of product. thus no scales can be formed in the molding device and the water pumps and vacuum pumps can be protected.
