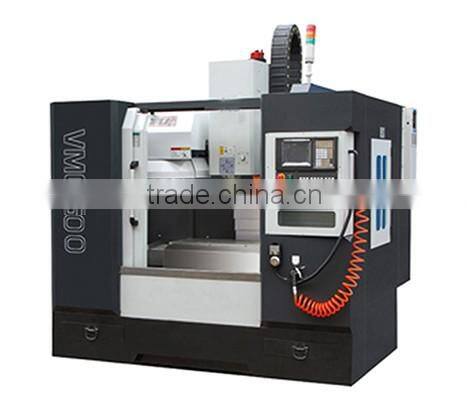

Small Type CNC Vertical Machining Center CNC Milling Machine (VMC600L)

CNC vertical machining center use popular inverted T-shape column structure, it is morden machine tool with automatic tool changer and 3/4-axis CNC system. Continous & automatic milling, drilling, expanding, hinges and tapping on 4 surfaces' machining processes after once clamped, suitable for medium batch process all kinds of flat surface, hole, complicated surfaces machining.

Standard configuration

(1) Spindle unit 8000rpm;

(2) CNC control system: SIEMENS 828D or 808D

(3) Spindle servo motor: the maximum speed of 8000rpm, power5.5Kw, torque 35Nm;

(4)Three axis feed motor: 130ST-M06025 X/Y, torque6 N.m (1.3kw) 130ST-M077 25Z, torque 7.7 N.m (2.0kw) with a power-off brake;

(5) Taiwan 10 knife Disc ATC;

(6) Taiwan linear rolling guide;

(7) Rigid tapping;

(8) Mobile hand pulse;

(9) Automatic lubrication;

(10) Z axis counterweight system;

(11) External cooling system and water tank;

(12) Gas cooling;

(13) Simple oil-water separation device;

(14)  The protection sheet metal shield and guard rail;

(15) Adjustment the pad iron sleeve;

(16) Tubular work lights,  caution light .

Optional configuration

(1)  Operating system:  Mitsubishi M70B or M70A; FANUC 0i-mater-MD or FANUC 0i  MD ; GSK, KND

(2) Fourth axis

(3) The umbrella ATC 16 pcs
