Home > Products > CNC Boring and Milling Machine > TK611 MINI CNC Boring Machine

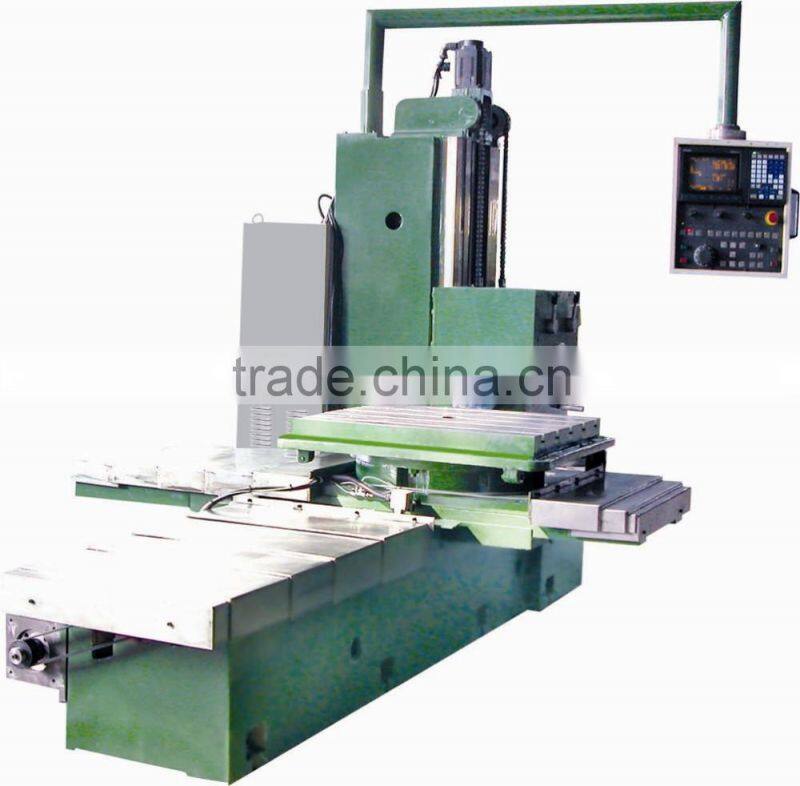

TK611 MINI CNC Boring Machine
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Production Capacity | High | Place of Origin | Shandong, China | |
| Brand Name | HANKUI | Model Number | TK611 | |
| Voltage | Customer's Requirement | Power(W) | 17/20.5kw | |
| Dimension(L*W*H) | 5347x3020x2889mm | Weight | 13200Kg | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Export Products
Product-related Data
| Model of machine tool | TK611 |
| processing range of machine tool | |
| Max. X-Axis Travel | 1200mm |
| Max. Z-Axis Travel | 1300mm |
| Max. Y-Axis Travel | 900mm |
| Distance from spindle center to table | 5~905mm |
| Boring axis axial stroke | 550mm |
| Max boring diameter | Φ240mm |
| Max drilling diameter | Φ50mm |
| workbench | |
| Table size | 1320×1010mm |
| Max. Loading capacity | 5000kg |
| T-slot | 7~22×125mm |
| workbench's rotation | Manual operation |
| Worktable gyration accuracy | 12"(±6") |
| Spindle and facing head | |
| Spindle diameter | φ110mm |
| spindle/toolholder interface | MAS 403(45°) BT50 |
| range of spindle speed | 12~1100rpm |
| Spindle motor | 17/20.5kw |
| 1100N.m | |
| Max. axial feed resistance | 13000N |
| Max.tool weight | 18Kg |
| Spindle speeds series | Stepless |
| Facing hesd tool holders radial travel mm | 160mm |
| Facing head speed range rpm | 4~125rpm |
| Facing head tool post biggest processing end diameter | 630mm |
| Facing head speed step | Stepless |
| Max. allowable torque | 1100N.m |
| Feed and fast moving speed | |
| axial displacement of the boring axis | 16.9mm |
| radial head feeding series | Stepless |
| range of swing plate feeding | 0.2~330mm/min |
| Boring axis feed series | Stepless |
| scope of boring axis feed | 0.5~1000mm/min |
| Boring axis move fast speed | 2060mm/min |
| Swing plate of radial head fast moving speed | 1370mm/min |
| XYZ rapid moving speed | 5000mm/min |
| range of X/Y/Z axial feed | 5~1000mm/min |
Spindle box elevator, workbench longitudinal and transverse fast moving speed | 5m/min |
| Positioning accuracy of machine | |
| X/Y/Z | 0.04/0.032/0.04mm |
| X/Y/Z | ±0.005mm/300mm |
| machine tools repeatability positioning accuracy | |
| X/Y/Z | 0.015mm |
| X/Y/Z | ±0.003mm/300mm |
| Dimension(L*W*H) | 5347×3020×2889mm |
| Machine gross weight | 13200Kg |
Transport Information
Packaging Information
Packaging Detail:High quality wooden case
Delivery Detail:With 30 days after we received the deposit or full payment
According to the customer's requirements.

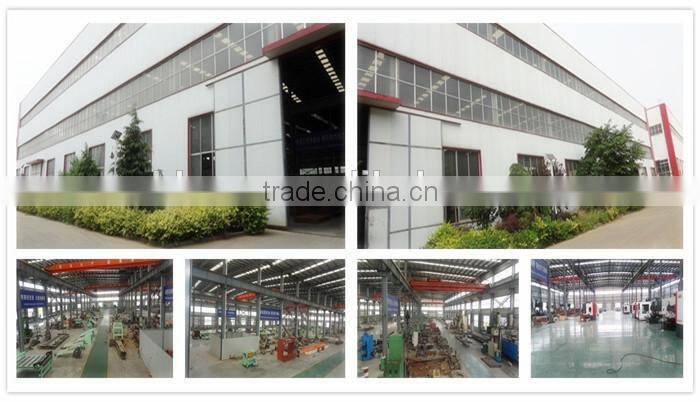

Factory Information
Jinan Hankui International Trade co., LTD, is a high tech enterprise and also an exporter, with
10000000 RMB capital,Integrated with manufacturing, processing and sales of machine tools,
which has more than 10 years experience in machine tools production. As the strategic partner
of Jinan First Machine Tool Co., Ltd, we have mastered the advanced machine tool technology
and dedicated to customers domestic and abroad and made an excellent achievement.
The main products are machine tools and metal parts. We have a strong technical force and rich
experience in machine tools industry,and our designers, R&D and engineering technicians had
taken part in the design and production of advanced level machine tools in China, such as
general utility horizontal machining center, CNC vertical lathe, CNC slant bed lathe, vertical
machining center, CNC double column machining center, etc.
In line with the purpose of "customers’ demand is our goal" and dedicated to provide high
quality CNC products and metal products for foreign customers, we warmly welcome customers
at home and abroad to visit our factory. Sincerely hope to cooperate with you.
Certificate Information
If you need to know more about TK611 MINI CNC Boring Machine please contact with us!
