COL5100F Hdmi Flash Encoder H.264, Mpeg-4 Sdi to ip Encoder, Iptv Flash Encoder

Specifications

Outline

COL5100F is a HD Flash Media encoding device. This device support 1080P and the encoding IP stream was transmitting by IP network. Connecting to Adobe Flash Media Server, the COL5100F captures data from various analog and digital audio and video sources and encodes in MPEG4 AVC (H.264) format. For direct broadcasting or transmission over a network or the Internet, the output of COL5100F can work as Adobe® Flash® Media Encoder and uncompressed data can be easily encoded into web-based video.

Features

• Alarm input/output and audio alarm
• PTZ for setting and calling preset position, cruise and track support
• H.264 video compression
• MPEG-2/AAC/G.711 audio compression
• High compression rate, proceed capsulation by TS stream and FLV
• Complete TCP/IP protocol, A/V transmission through TCP/IP network and embed WEB for preview support
• Duplex talk and unidirectional broadcasting support
• PAL/NTSC support
• POE support
• OSD support
• OVERLAY support
• MOTION-DETECT support
• Start/end time configuration support
• TCP/UDP/RTMP support
• Able to real-time record the compressed code stream through network
• Able to upgrade and realize maintenance through network
• Embed WEB,able to visit video server through web
• Encrypt user name, command and code stream with password to prevent leaking
• Check device state through network
• Real-time browser of any one-channel or multi-channel A/V signal by web

Specifications

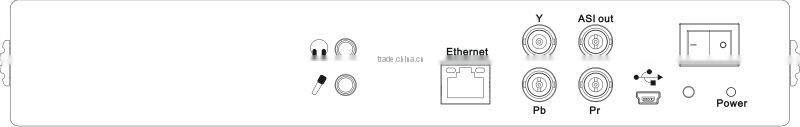

Front Panel:

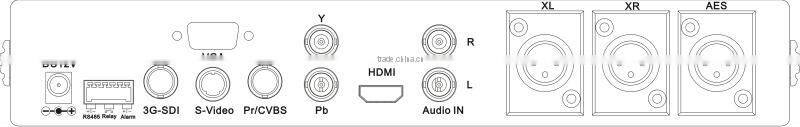

Rear Panel:
