Shanghai Top Ten Fullcolor P16 Outdoor Waterproof Led Display Hdxxx Video

Simple introduction:

LED screen, also called electronic display Screen or floating word.Is made up of LED dot matrix and LED PC panel, with red, blue, white, bright green LED lights to display text, images, animation, video, content.Can make different adjustment according to the needs of different occasions, such as general advertising the flow of calligraphy and painting, is through the flash animation a, the savings in the screen in a memory card, then displayed through technical skill, can change at any time according to different needs, each part of the component is a modular structure of the display device.The traditional LED display is usually composed of display module, control system and power system.

Product Features:

It can realize high density: indoor can be as high as 62.500 / sq.m (P4).
Good mixed color: using light-emitting device itself in micro processing and wave-particle duality of light and, makes the red light particles, pure green light particles, blue three kinds of particles will be fully mixed together each other.
Super antistatic performance advantage: production environment has a strict standard and the insulation of the product structure design.
Reliability: relative to SMD and LED LAMP, LED DOT MATRIX - smoothness is very good, is of great aesthetic perception.
Viewing Angle: 140 degrees (horizontal)
High permeability: a new generation of lattice technology with high purity performance of the chip itself, and nearly 100% luminous flux rate of epoxy resin materials, achieved a near perfect fully rate.
High brightness: 0603 or 0805 in the form of relatively discrete table, LED can have more luminous flux is reflected;Module form, 4 * 4 1/4 scan can be realized, to further improve the brightness.

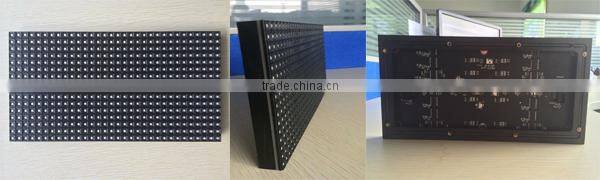

Modules of outdoor led display screen board:

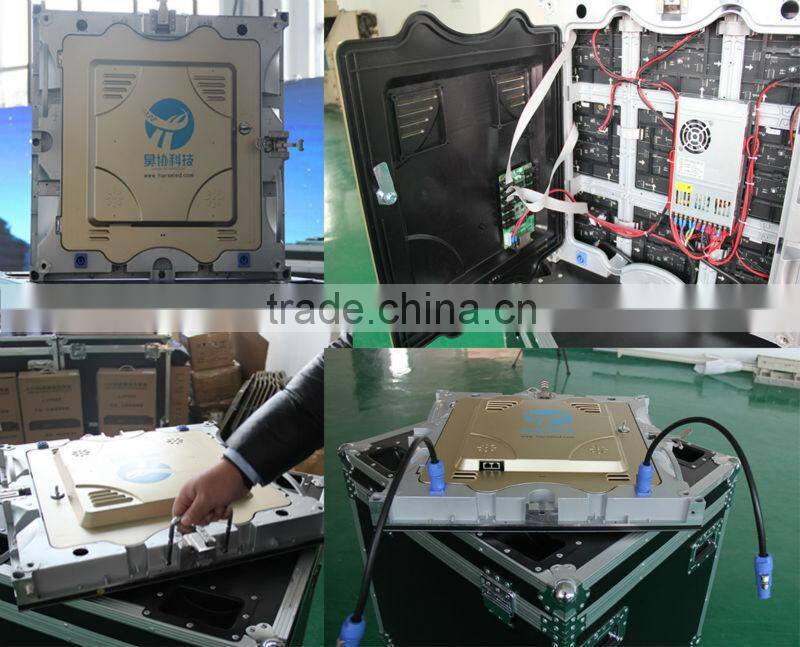

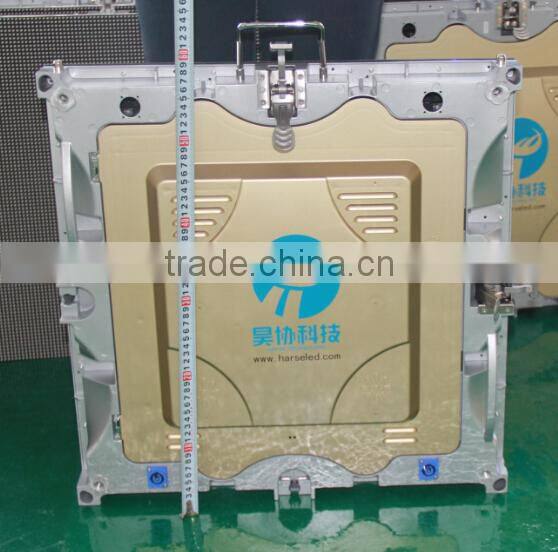

Cabinets:

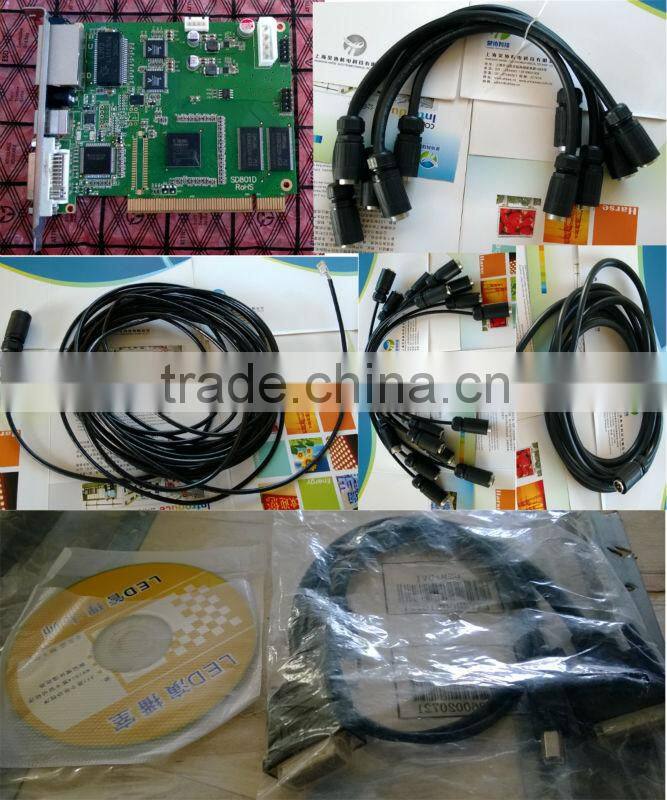

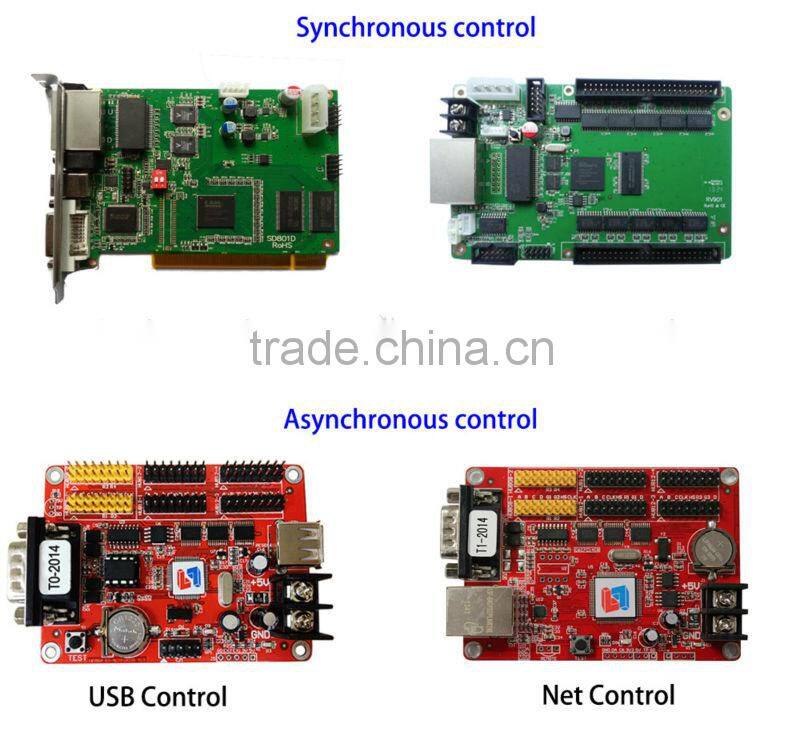

Control cards:

Other accessories:

Main specification of p8 outdoor led display:

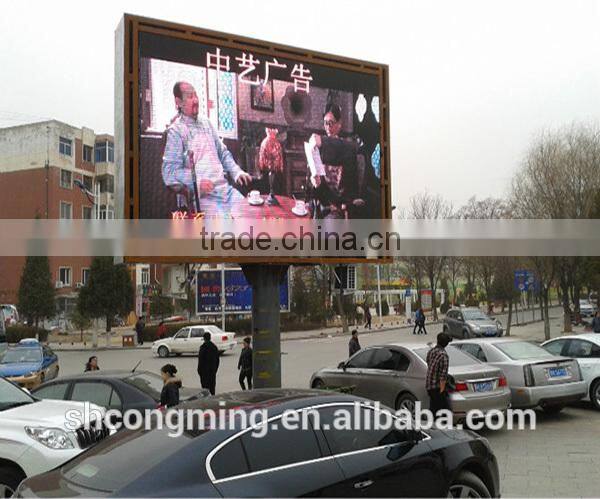

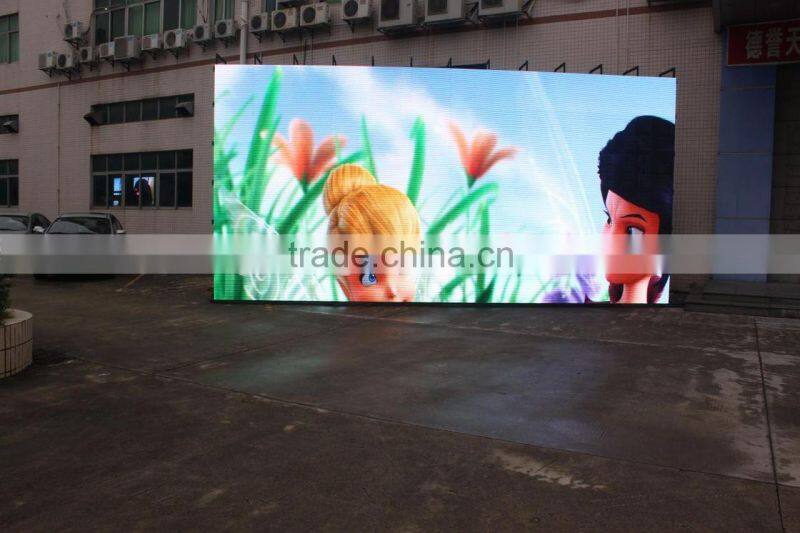

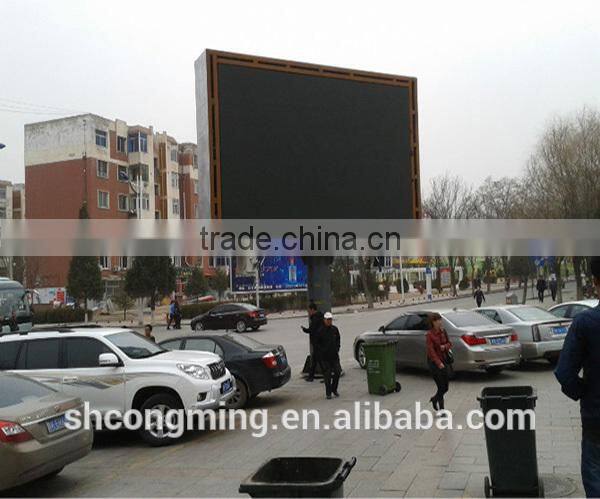

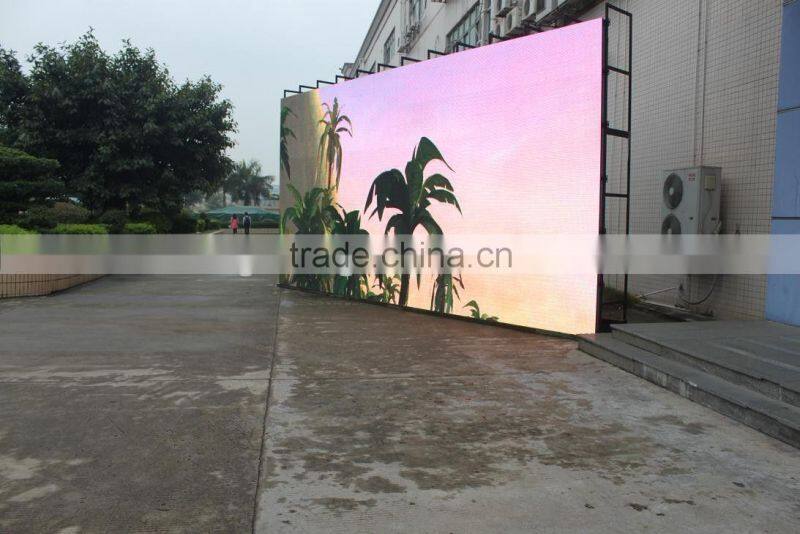

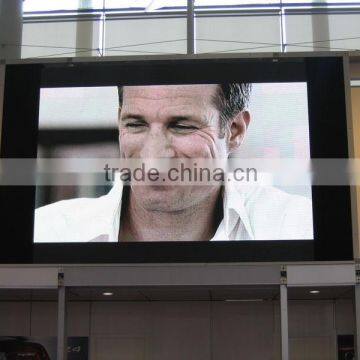

Project case of outdoor led display:

Production line:

Certification:

Normal installation method:

Basice knowledge of LED Screen:

1.  what is LED?

LED is the abbreviation leds (LIGHT EMITTING DIODE), it’s emit visible wavelengths led in the LED display industry

2.  what is a pixel and pixel pitch?

The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.

Pixel pitch refers to the center of the distance between two adjacent pixels.

3.  what is the DIP, SMT and SMD?

DIP is DOUBLE IN - LINE PACKAGE, dual-in-line assembly

SMT is FACE SURFACE MOUNTED technology, Is currently one of the most popular technology in the electronic assembly industry;

SMD is SURFACE MOUNTED DEVICE.

4. what is the LED display module?

The base unit determined by circuit and installation structure, has the display function, can simple assembling.

Package and transport:
