10-20l Encolsed Round Tin Can Production Line /Semi-automatic Can Making Line
- 100 Set / Sets per Month
- shanghai
- T/T
You May Like
-
Semi-automatic Round Tin Can Production Line/18-20l
-
10-20l Round Tin Can Making line/Oil can Production Line
-
10-20l Tin Can Making Line/Barrel Production line
-
10-20l Concial Barrels Production Line /Round Tin Can Making Line
-
10-25L Semi-automatic Conical Can Making Machine
-
10-25L Paint Metal Can Production Making Line
Product Details
| Condition | New | Application | Food, Chemical, Other, Food, Chemical, Machinery & Hardware | |
| Packaging Type | Cans, Barrel | Packaging Material | Metal, Other, Metal, plywood case | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380v | Place of Origin | Jiangsu, China | |
| Brand Name | SUZHOU FIRST | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
10-20l Enclosed Round Cans production line1,semi-autoatic
2,delievery in tme
3,good prce
Production details:
Slitting Machine GTIB-15
Thickness | 0.18-0.5 mm |
Sheet Width | 60-1050 mm |
Capacity | 1.6 m/min |
Power | 1.1kw |
Net Weight | 1100 kg |
Dimension | 1500×1200×1100mm |
Automatic Round Shape Roller Machine CY400-A
Diameter Range | 100- 300mm |
Thickness | 0.20-0.35mm |
Max .Width | 400mm |
Capacity | ≤30cpm |
Net Weight | 650kg |
Dimension | 1300*730*1330mm |
Welding Machine FB2000-A
Power | 3N.380V/50Hz15KVA |
Welding speed | ≤12m/min |
Capacity | 20~50cans/min |
Welding Frequency | 100~250Hz |
Diameter Range | φ65~φ300mm |
Height Range | 70~400mm |
Overlap | 0.6~1.2mm |
Materials | Tin plating steel sheet T2~T3 |
Thickness | 0.2~0.38mm |
Copper Wire Diameter | 1.5-1.7mmT2 |
Cooling Water | ≥0.4MPa10L/min |
Dimension | 1350×1300×1700mm |
Hydraulic Expanding Coning Machine 3TA20
Thickness | ≤0.5mm |
Diameter Range | 210-300 |
Height Range | 270-400 |
Capacity | 15cans/min |
Power of motor | 5.5kw |
Net Weight | 900kg |
Dimension | 1300x780x1150mm |
Hydraulic Beading Machine 3TC20
Thickness | ≤0.5mm |
Diameter Range | 210-300mm |
Height Range | 270-400mm |
Capacity | 15cans/min |
Power of motor | 5.5kw |
Net Weight | 950kg |
Dimension | 1470x940x1980mm |
Seaming Machine(4 wheels)GT4A39-R
Capacity | ≤ 20cans/min |
Diameter Range | 210-300mm |
Cooling Water | ≥0.5MPa |
Irregular Can(Diameter) | 50-330mm |
Height Range | 60--400 |
Thickness | ≤ 0.4mm |
Net Weight | 800kg |
Power of motor | 2.2kw |
Dimension | 1000x600x2000mm |
Single-Ram pneumatic spot welder DN40-A
Power | 3N38050HZ 40KVA |
Thickness | 0.2—0.5 |
Capacity | 20-30cans/min |
Compressed air | 300L/min 0.6Mpa |
Electrode journey | 50mm |
Net Weight | 300kg |
Dimension | 80*60*140mm |

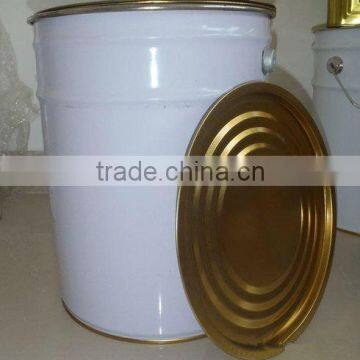

Sample cans we can make:
Customers from all over the world:
Company picture:
Contact Us
- Suzhou First Packing Machinery Co., Ltd.
- Contact namehaitao li Chat Now
- Phone86-0512-65570088
- AddressNo.70 Xinxin Road Chengbei Suzhou Jiangsu, Suzhou, Jiangsu
