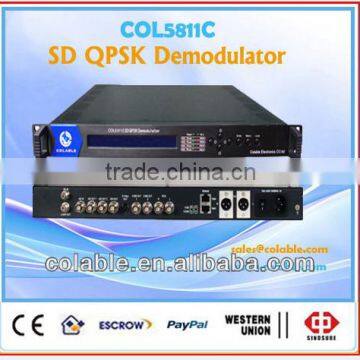

COL5811C sd ird, BISS ird, satellite descrambler
Negotiable
/ Pack
2 Packs(Min. Order)
- shenzhen/hongkong
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | colable | |
| Model Number | COL5811C |
Product Description
COL5811C sd ird, BISS ird, encrypted satellite channels decoder
Outline
DVB Basic model IRD with CI slot can decode transport stream (compliant with MPEG2) from ASI or tuner into audio & video signal. With the help of CAM module, it can decrypt the encrypted programs in the input TS. Apart from this, the IRD has 2 ASI outputs and digital video & audio output interfaces, including CVBS, S-video and XLR, etc.
Features
- MPEG-2 digital & Fully DVB compliant
- QPSK demodulation supports.
- Two routes ASI MPEG-2 transport stream output
- QPSK modulation frequency: 950~2150MHz, symbol rate:2~45Msps
- User can edit various satellites and transponders information
- PAL / NTSC format TV
- Can receive C / Ku-band SCPC / MCPC information from Satellite
- PAL / NTSC automatic conversion
- Channels automatically saved
- 2 CVBS outputs, 2 AUDIO outputs
- 2 PCMCIA Interfaces
- 2 TS stream outputs, One TS Stream Input
- One S-Video output
- 2 separate CIM modules, each supports up to decrypt 8 channel Programs
- One LNB input, one LNB output
- An RS232 interface, convenient to software upgrade
DVB-S Basic model IRD
InputFrequency Range: | 950-2150MHz |
Symbol rate: | 2-45MBauds |
Signal Strength: | -65- -25dBm |
FEC Demodulation : | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
DVB-S2 Basic model IRD
Input Frequency Range: | 950-2150MHz |
Input Level: | -65- -25dBm |
Code Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
Symbol Rate | 1-45MBauds |
Input Impedance | 75Ω |
Demodulation Mode : | QPSK, 8PSK |
Frequency Stepping: | 500 KHz |
