New Rectangle Bucket Making Line

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Chemical, Other, Food, Chemical, Machinery & Hardware
Packaging Type	Cans, Barrel	Packaging Material	Metal, Other, Metal, plywood case
Automatic Grade	Semi-Automatic	Driven Type	Electric
Voltage	380v	Place of Origin	Jiangsu, China
Brand Name	SUZHOU FIRST	Model Number	other rectangle bucket making line
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Suppply New Rectangle Bucket Making Line

Production details:

Name and picture	Technical Specificatins
Slitting Machine GTIB-15	Thickness: 0.18-0.5mm Sheet Width : 60-1050mm Capacity: 1.6 m/min Power: 1.1kw Net Weight: 1100 kg Dimension: 1500×1100×1200mm
Automatic Round Shape Roller Machine CY400-AT	Diameter Range: Φ100-Φ300mm Thickness : 0.20-0.35mm Max.Width : 400mm Capacity (cpm) : ≤30 Net Weight: 650mm Dimension: 13007301330mm
Welding Machine FB2000-A	Power : 3N.380V/50Hz 15KVA Welding speed: ≤ 12m/min Capacity : 20~50cans/min Welding Frequency : 100~250Hz Diameter Range: φ65~φ 300mm Height Range: 70~ 400mm Overlap: 0.6~ 1 .2mm Thickness: 0.2~ 0 .38mm Copper Wire Diameter: φ1.5~φ 1.7mm T2 Cooling Water: ≥0.4MPa 10L/min Net Weight: 1300kg Dimension : 1350×1300× 1700mm
Hydraulic Four-side Pannelling Machine 3F18Y	Range of production: 9 -20L Thickness (mm): 0.26-0.35 Power of motor : 7.5kw Maximum oil pressure: 10 Map Capacity: 15—20cans/min Net Weight: 7 00kg Dimension(mm): 1300×700×1100
Hydraulic Flanging Machine 3FB18	Range of production: 9 -20L Thickness (mm) : 0.26-0.35 Power of motor : 5.5kw Maximum oil pressure: 8Map Capacity: 15—20cans/min Net Weight : 800kg Dimension(mm): 1300×700×1100
Seaming Machine GT4A39-S	Capacity: 15-20cans/min lrregular Can(Diagonal): 50-330mm Height Range: 60--400mm Thickness: ≤ 0.4mm Net Weight : 800kg Power of motor : 2.2kw Dimension : 980×580×1900mm
Single Head Ear welding Machine DN40B	Power: 3N38050HZ 40KVA Thickness : 0.2—0.5mm Capacity: 25cans/min Compressed air: 300L/min 0.6Mpa Electrode joumey: 50mm Net Weight: 320kg Dimension: 8060140mm

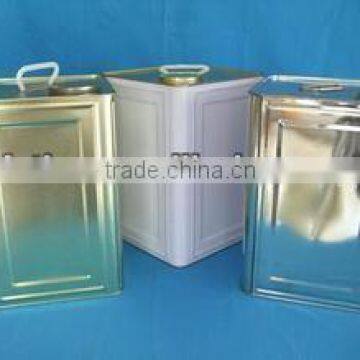

Sample cans we can make: chemical/paint drum/barrels/cans, oil barrels/cans, grease oil cans, food cans, adhesive cans, garbage basket, gasoline cans, spray cans, ink tank, etc.

Customers from all over the world: the main market is in Asia, South and North America, Africa .

About our company:

Suzhou First Packing Machinery Co,.Ltd

Suzhou First Packing Machinery Co.Ltd was founded in 1997.it's the profession design can maker

machine manufacturer ,the productions are wildly apply to metal container packing field,such as food,

beverage,petroleum,chemical industry,paint,coating,and so on.

we are looking forward to your visit for further negotiation and cooperation.Welcome friends from all

over the world to visit our company,we will try our best to serve you .

We speacilized in various can making such as:

1-5l round tin canister making line.

1-4l square can making machine.

10-20l cone tank production equipment.

18-20l round can making equipment.

18-20l rectangular tank production line.

Automatic food can production machines.

Advantages of our machine:

1, After service:Engineers availabe t service machinery overseas. The engs will training the buyer's workers to operate .One year warranty for free.

2 ,Electrical component:

MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.

SCHNEIDER electrical appliance components from France.

LG air switch,contactor and circuit breaker from South Korea.

SEMIKRON control thyristors from German.

BOURNS potentiometer from America.

3, Payment:T/T.30% deposit in advanced,balance should be payed before shipment.

4, Package:Plywood(standard export packing).
