Home > Products > 1-5Liter Round Can Production Line > 1-5L Small Round Oil Can Making Machine
1-5L Small Round Oil Can Making Machine
- 100 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Chemical, Other, Chemical, Machinery & Hardware | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380v | Place of Origin | Jiangsu, China | |
| Brand Name | SUZHOU FIRST | Model Number | 1-5L oil can making machine | |
| Dimension(L*W*H) | 1350x1300x1700mm | Weight | 1300kg | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1-5L Small Round Oil Can Making Machine
Name and picture | Technical Specificatins |
Slitting Machine GTIB-15
| Max.sheet thickness: 0.5mm Sheet Width : 60-1050mm Attached engine Power: 1.1kw Net Weight: 1100kg Dimension: 1500×1100×1200mm |
Round Shape Roller Machine CY400
| Thickness : ≤ 0.4mm Diameter Range: 80- 300mm Max.Width: ≤400mm Capacity: 50-80 cans / min Power of motor: 0.75Kw Net Weight: 100Kg Dimension : 870 x 670 x 920mm |
Welding Machine FB2000-A
| Power: 3N.380V/50Hz 15KVA Welding speed: ≤12m/min Capacity: 20~50cans/min Welding Frequency: 100~250Hz Diameter Range: φ65~φ300mm Height Range: 70~400mm Overlap: 0.6~1.2mm Thickness: 0.2~0.38mm Copper Wire Diameter: φ1.5~φ1.7mm T2 Cooling Water: ≥0.4MPa 10L/min Net Weight: 1300kg Dimension: 1350×1300×1700mm |
Flanging Machine FB-A
| Thickness : 0.25—0.35 Nominal: 10T Slide block stroke: 64mm die height adjustment: 15mm Die set height adjustment: 60mm Net Weight: 600KG Dimension : 980×600×1730mm |
Seaming Machine GT4A68
| Round Can(Diameter): Φ50-Φ180mm Capacity: ≤ 30cans/min Thickness: ≤ 0.4mm Height Range: 60--300mm Net Weight: 450kg Power of motor: 1.5kw Dimension : 720×520×1760mm |
Double Head Ear Welding Machine DN60B
| Power: 3N38050HZ 60KVA Diameter Range: φ150—φ300 Thickness (mm): 0.2—0.5 Capacity: 25cans/min Compressde Air: 300L/min 0.6Mpa Electrode joumey(mm) 50 Net Weight (kg): 350 Dimension(mm): 105*80*100 |
Can making process:

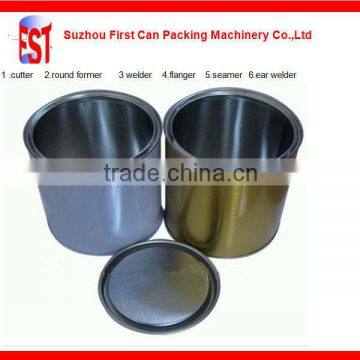

Sample cans we can make: chemical/paint drum/barrels/cans, oil barrels/cans, grease oil cans, food cans, adhesive cans, garbage basket, gasoline cans, spray cans, ink tank, etc.
Customers from all over the world: the main market is in Asia,south and north America , Africa.
Suzhou First Packing Machinery Co,.Ltd
Suzhou First Packing Machinery Co.Ltd was founded in 1997.it's the profession design can maker
machine manufacturer ,the productions are wildly apply to metal container packing field,such as food,
beverage,petroleum,chemical industry,paint,coating,and so on.
we are looking forward to your visit for further negotiation and cooperation.Welcome friends from all
over the world to visit our company,we will try our best to serve you .
We speacilized in various can making such as:
1-5l round tin canister making line.
1-4l square can making machine.
10-20l cone tank production equipment.
18-20l round can making equipment.
18-20l rectangular tank production line.
Automatic food can production machines.
Advantages of our machine:
A,one year warranty for the whole system.
B,Free equipment installation and debugging.
C, Atfer one year,we can help you to maintain the machine and accessories are provide only the coat price.
D, We can help you to design the production line ,workshop and provide turn key project.
2 ,Electrical component:
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from German.
BOURNS potentiometer from America.
3, Payment:T/T.30% deposit in advanced,balance should be payed before shipment.
Packaging Details: To be packed in plywood case for square can machine.
Delivery Detail: 30 days after recived the deposit for square can machine.
