Paint Rectangular Metal Can Making Line on Sale
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Packaging Type | Barrel, Cans | |
| Packaging Material | Wood | Automatic Grade | Semi-Automatic | |
| Driven Type | Hydraulic | Voltage | 380V | |
| Power | 60KVA | Place of Origin | Jiangsu, China | |
| Brand Name | SUZHOU FIRST | Model Number | Small Square Can | |
| Dimension(L*W*H) | 20GP | Weight | 5 ton | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
________Paint Rectangular Metal Can Making Line ________

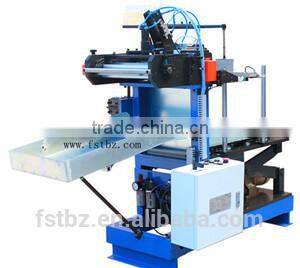

♦ Shearing Machine
Model | GTIB-15 |
Max.Thickness | 0.5mm |
Sheet Width | 60-1050mm |
Power | 1.1kw |
Net Weight | 1100kg |
Dimension | 1500×1100×1200mm |
♦ Automatic Round Forming Machine
Model | CY400-AT |
Diameter Range | Φ75-Φ300mm |
Thickness | 0.2-0.4mm |
Max width | 440mm |
Capacity | 20-30cans/min |
Net weight | 450kg |
Dimension | 1300x730x1330mm |

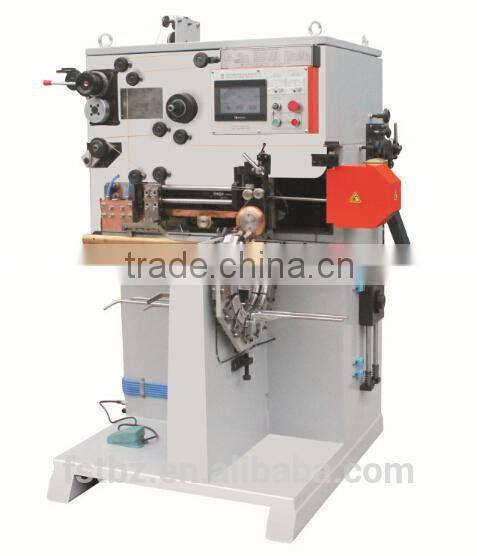

♦ Backward Can Body Seam Welder
Model | FB2000-A | FB2000-B |
Power | 3N.380V/50Hz 15KVA | |
Welding speed | ≤ 12m/min | |
Capacity | 20~50cans/min | |
Diameter Range | Φ 65~ Φ 300mm | Φ 52~ Φ 180mm |
Height Range | 70~ 420(500)mm |
|
Overlap | 0.6~1.2mm | 0.4~0.9mm |
Thickness | 0.18~0.4mm | 0.18~0.35mm |
Copper wire | Φ 1.5 T2 | |
Cooling water | 0.3MPa 8-10L/min ≤20℃ | |
Net Weight | 1300kg | |
Dimension | 1350×1200×2000mm | |
♦ Hydraulic Square Can Forming Machine
Model | 3F4Y |
Size | 1L_4L |
Power | 3KW |
Thickness | 0.15-0.3mm |
Max width | 440mm |
Capacity | 20-30cans/min |
Net weight | 700kg |
Dimension | 1400x720x1500mm |

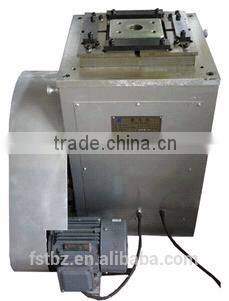

♦ Hydraulic Square Can Flanging Machine
Model | 3FB4J |
Size | 1L_4L |
Power | 0.75KW |
Thickness | 0.15-0.3mm |
Max width | 440mm |
Capacity | 20-30cans/min |
Net weight | 350kg |
Dimension | 680x1020x800mm |

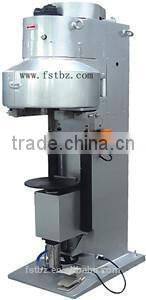

♦ Pneumatic Sealing Machine
Model | GT4A19F |
Size | 1L_4L |
Power | 2.2kw |
Thickness | ≤ 0.4mm |
Height Range | 50--400mm |
Spin rate | 940 revolutions/min |
Capacity | 15-20cans/min |
Net weight | 800kg |
Dimension | 980x580x1900mm |
____________________Our Advantage____________________
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON optical switch form Japan.
♦ SMC Waterway detected flow switch from Japan
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds.
____________________Sample Showcase__________________
__________________Company Information_________________


_____________________To Customers____________________
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 18 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
_____________________Contact Way_____________________
choose one way you like,and send me by mail or call me or online.
