Home > Products > conveyor equipment host > High Strenght and Expansion Force Bucket Load Cement Clinker With Heavy Equipment Paint

High Strenght and Expansion Force Bucket Load Cement Clinker With Heavy Equipment Paint

FOB Price

US$ 98,000 - 189,000 / Set

1 Set(Min. Order)

Port Shanghai ningbo
Payment TermsD/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Bucket Conveyor
Material	Other, Carbon steel	Material Feature	Heat Resistant
Structure	Conveyor System	Load Capacity	Non
Place of Origin	Jiangxi, China	Brand Name	HuaXin
Model Number	SCD630 SCD800 SCD1000 SCD1200	Voltage	380V
Power(W)	150KW	Dimension(LWH)	According to you requires
Certification	TUV ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.High strenght and expansion force bucket load cement clinker with heavy equipment paint
2.Non leakage
3.Low maintenance and

--Product description

1.Package:Nude package

2.Convey capacity:5000T 2500T 1500T per day

3.Product experience:10 years

4.Structure:Conveyor system

5.Operation speed: (0.26m-0.3m)/s

6.Assembly inclination:0°-60°

7.Assembly: send professionals to guide

8.Price:Factory price

9.operation status: Stable operation

10.Delivery: 45 days after deposit receiving

--Product parameter

Horizontal and inclination ≤25° convey ability(table1)

*Model*	*Edge high*	*Rated throughput(when inclination ≤25° )m³/h*
		*Chain speed m/s*
		*0.193*	*0.244*	*0.308*	*0.344*
*SCD630*	*250*	91	*116*	*146*	*163*
*SCD800*	*250*	*116*	*148*	*186*	*208*
*SCD1000*	*300*	*174*	*222*	*279*	*312*
*SCD1200*	*350*	*244*	*310*	*391*	*436*

Notice:1.Conveyor angle ≥35°, chutes equipped with baffles to prevent material return

2.If have others requires.edge high can transform.and conform to conveyor capacity.

3.When inclination more than 25 degree.For table1multiplied by the actual transmission capacity table2

When conveyor angle≥25° .the parameter follow(table2)

*Edge high*	*Adjustable parameter*
*Edge high*	*≤25°*	*30°*	*35°*	*40°*	*45°*	*50°*	*55°*	*60°*
*200*	1	*0.91*	*0.83*	*0.75*	*0.69*	*0.61*	*0.54*	*0.47*
*250*	1	*0.93*	*0.86*	*0.80*	*0.74*	*0.69*	*0.63*	*0.57*
*300*	1	*0.94*	*0.89*	*0.83*	*0.79*	*0.74*	*0.69*	*0.65*
*350*	1	*0.95*	*0.90*	*0.86*	*0.82*	*0.78*	*0.74*	*0.70*

--Application

1)Suitable for horizontal and inclined conveying of particle materials, particle size ≤200mm.tempature≤250°

2) Reasonable design, throughput, throughput up to 436m³/h

3)Convey distance up to 150m.Max lifting high 60m

4)Max conveyor inclination angle reached 60°

5)Traction chain is formed by forging chain link plate.high strength and long life

6) Bearing structure separate from your tractor, conveyor load is reasonable, stable operation

7)Assemble and maintenance convenient.low operation maintenance consumption

--Head and tail device

--Delivery

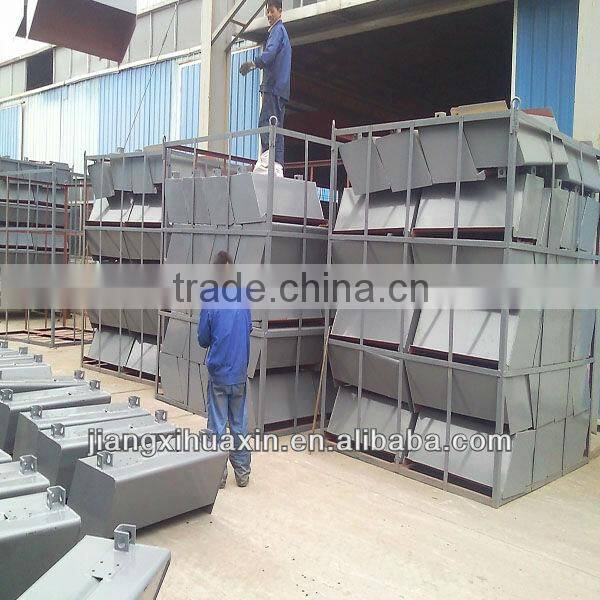

--Product machine

--Customer visit company

--Certification
