Home > Products > accessories > Key Chain for Cement Lifting Equipmet

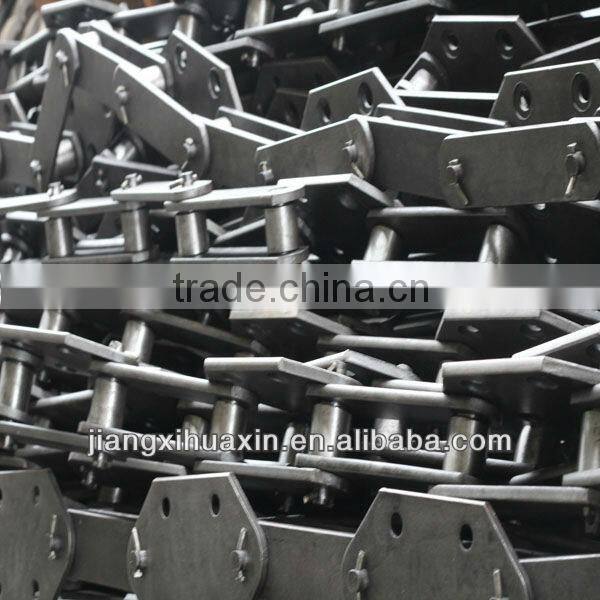

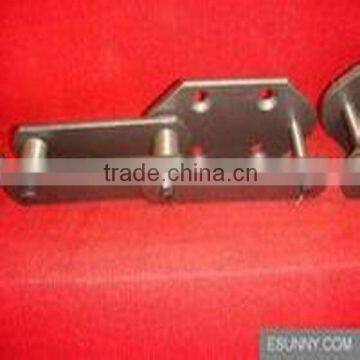

Key Chain for Cement Lifting Equipmet

FOB Price

US$ 138 - 226 / Meter

100 Meters(Min. Order)

Port Shanghai ningbo
Payment TermsD/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangxi, China		Brand Name	HuaXin
Model Number	NE

Product Description

Specifications

1.key chain for cement lifting equipmet
2.High strength and tenacity
3.Low maintenance ritio

--product description

1.Applcation:Cement elevator equipment or others

2.Package: According to you request

3.Assembly:Engineer guide

4.Price:Factory price

5.Warranty:1 year

6.Delivery:50 days

7.Product experience:5 years

8.Color: According to you request

9.Dimension(L*H*W): According to you request

10.Material:40Mn

11.Material feature:High strength and tenacity

--Product parameter

		Bucket			Circulation Components Weight			Materials max lump
		Bucket						Percentage of%
Model	Lifting power m³/h	Volume	Bucket distance	Bucket speed		10	25		50	75	100
NE15	15	2.5	203.2	29.8	28	65	50		40	30	25
NE30	32	7.8	304.8	30.1	35	90	75		58	47	40
NE50	60	14.7	304.8	30.1	64	90	75		58	47	40
NE100	110	35	400	31	89	130	105		80	65	55
NE150	170	52.2	400	31	112	130	105		80	65	55
NE200	210	84.6	500	30	134	170	135		100	85	70
NE300	320	127.5	500	30	188	170	135		100	85	7
NE400	380	182.5	600	30	205	205	165		125	105	90
NE500	470	260.9	700	30	223	240	190		145	120	100
NE600	600	300.2	700	30	274	240	190		145	120	100
NE800	800	501.8	800	30	313	275	220		165	135	110

--Application

1)Elevator are widely used a vertical lifting equipment.It was used to promoted a variety of material.such an al.cement.clinker et.

2)Ne bucket elevator is the company introduced a series of similar foreign products technology development product.in all industrial contries.this type of hoist is widely use

--Feature

1)Wide range of upgrade.This type of hoist for materials. Fewer characteristics and requirements

2)Big conveying capacity.This series of elevator has modelNE15-NE800.elevator the scope for15-800m³/h

3) Driving power of small. This type of hoist adopt to flow into the feeding.Gravity-induced discharge .Using intensive arrangement of large capacity bucket conveyor. Low chain speed. big Lifting .Material upgrade almost no Driving power is small.

4)Long use life.Rarely occurs between material extrusion collisions.The machine is designed to ensure that materials in feed. Lifting and unloading will not blow down.This prevents abrasive wear.Conveyor chains plate chain type high strength abrasion resistant chains.Extended service life of the chain and bucket.

5)High lift height reached 60m

6)Low consumption

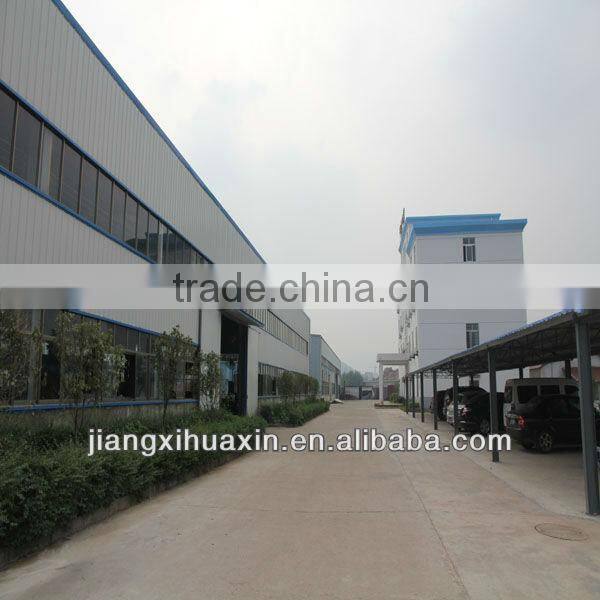

--Company profile

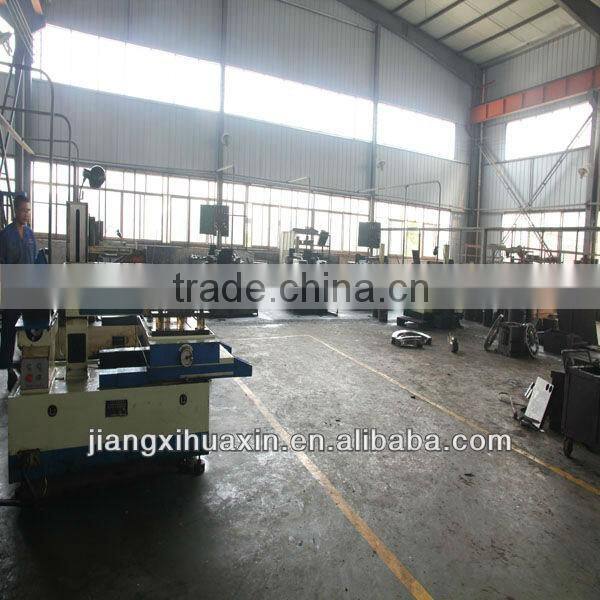

--Wire-cutting

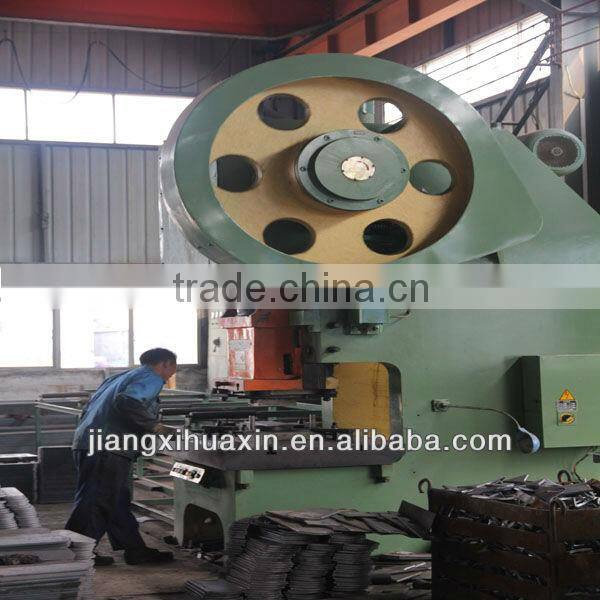

--320T punching machine

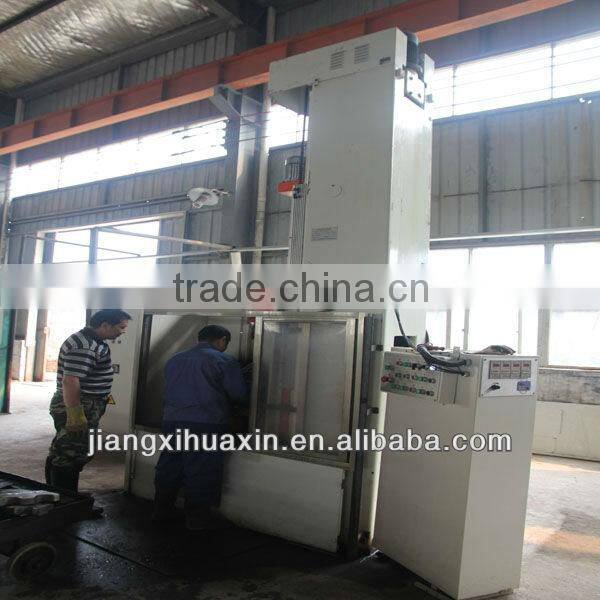

--quenching

Clevis pin with set and pin set must be quenching ,quenching depth 2mm.hardnessHRC48-55

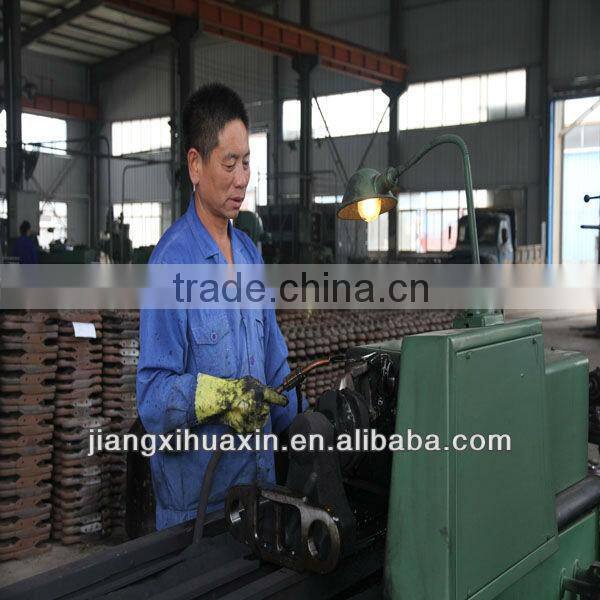

--Inspection

Every chain plate must be accros magnetic particle flaw detector before go out factory

--To Be Shipped

--Certification
