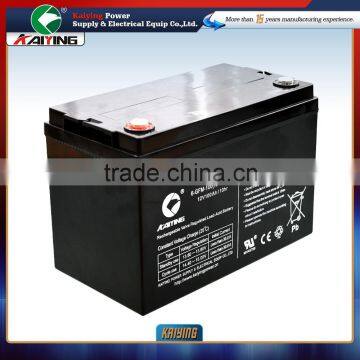

12V100AH Chinese Manufacturer Deep Cycle Battery for Solar System

FOB Price

US$ 95 - 95 / Piece

200 Pieces(Min. Order)

Port XIAMEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	KAIYING
Model Number	12V100AH	Usage	UPS
Voltage	Other, 12v	Sealed Type	Sealed
Maintenance Type	Free	Size	L329W173H217(TH210)mm
Weight	29KG	Nominal Capacity	100AH

Product Description

Banner

Gel battery 12V40AH Cells per Unit	6
Normal Voltage	12V
Capacity	40Ah@10Hr-rate to 1.80V per cell@25℃
Weight	Approx.(13.3±3%) kg (29.32lbs)
Maximum Discharge Current	400A(5sec)
Internal Resistance	Approx. 8mΩ full charged @25℃
Operating Temperature Range	Discharge: -20℃~65℃
	Charge: 0℃~55℃
	Storage: -40℃~60℃
Nominal Operating Temperature Range	25℃±3℃
Float Charging Voltage	13.7~13.9VDC/unit Average @25℃
Maximum Charging Current	12A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25℃
Self Discharge	KAIYING Valve Regulated Lead Acid (VRLA) batteries can be stored
	for more than 6 months at 25℃. Self-discharge ratio less than 3%
	per month at 25℃. Please charge batteries before using.
Terminal	Terminal T7/T21
Container Material	ABS(UL94-HB)
Container Material	*Flammability resistance of (UL94-V0) can be available upon request

Hot selling products

Factory view

Our company has introduced a series of advanced equipment including automatic laminating machine, automatic welding machine and so on. In addition, we have obtained ISO9001 quanlity management system certification, ISO14001 environmental management system certification and ISO18001 certification. We have also obtained the until stats UL approval and EU CE approval for all type of batteries. Our products range consist of more than 200 categories, which extensive using Alarm Systems, Power Tools, Electric vehicles, Electric toy, Motorcycles, UPS Power Systems, Solar Energy etc.. The nominal voltage of KAIYING battery including 2V, 4V, 6V, 8V, 12V, 24V, etc. The rated capacity is from 0.3AH-3000AH. Products are exported to Southeast of Asia, Middle east, Africa, Europe, American and others countries and regions.

More information, please feel free to contact with us.

If there is anything we can do for you, we shall be more than pleased to do so.
