Machining Ductile Cast Iron, FCD 450/500/600 Ductile Cast Iron Quality Choice
- 30000 Ton / Tons per Month
- Qingdao port China
- T/T Credit Card
You May Like
-
Machined Cast Iron Machinability, Machinability Of Cast Iron
-
Finishing Cast Iron Standards, Cast Iron Characteristics
-
Hot Sale Class 40 Cast Iron Grey, Cast Iron Sizes From China Supplier
-
Raw Cast Iron Production, fc/200/250/300 Cast Iron Specification
-
FC250/FCD 450 Cast Iron Cost, Cast Iron Shapes,Cast Iron Density
Quality Choice
-
Iron Casting Products Iron Bar For Sale, Custom Cast Iron Wholesale Price
Product Details
| Place of Origin | Shandong, China | Brand Name | OEM | |
| Model Number | DIA20MM-DIA450MM | Application | Industry | |
| Material | Iron | Dimensions | Standard |
Bundled with steel wire, or flat steel ribbon, or as required.
For 20 feet GP, 26 Tons is available.
For 40 feet GP, 30 Tons is available.
Product Description
Machining Ductile Cast Iron, FCD 450/500/600 Ductile Cast Iron
What is our Machining Ductile Cast Iron, FCD 450/500/600 Ductile Cast Iron
01 | Round profiles | Φ25 ~ 450mm |
02 | rectangular, square profile | 25 × 25 ~ 300 × 300 mm |
03 | regular polygon and rectangular profiles | 25 × 30 ~ 60 × 400 mm |
04 | semicircle profile | R20 ~ 200 mm |
05 | small diameter profile production | Φ25-50mm |
06 | Large Dia section and casting iron bars | Φ450mm ×500mm sheet |
07 | Pipe | Wall thickness 18-50mm |
08 | Symmetrical shaped cross-section |
|
09 | Asymmetrical shaped cross-section |
|
10 | Industry-specific iron bars |
|
11 | Special iron bars for machine skateboarding |
|
12 | Hydraulic valve block special iron bars |
|
13 | Etch resistant ductile iron alloy products |
|
14 | Glass molds for cast profiles products |
|
15 | Other industry-specific iron bars |
|

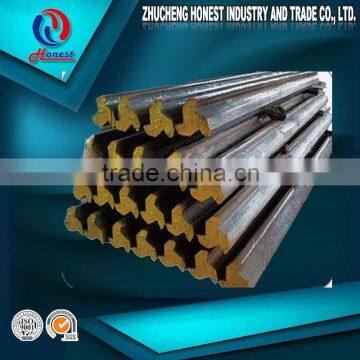

Our Cast Iron Rod Picturs
What is our cast iron bar standard?
Table 1
Shape | Size(mm) | Section of tolerance(mm) | Deflection(mm) | Machining allowance to defects(mm) | |||
|
| Gray iron bars FC | Ball iron bars FCD | Gray iron bars FC | Ball iron bars FCD | Gray iron bars FC | Ball iron bars FCD |
Circular | Φ25-Φ45 | 0-+1.0 | 0-+1.5 | ≤4.0 | ≤5.0 | ≤1.0 | ≤1.0 |
Φ50-Φ65 | 0-+1.5 | 0-+1.5 | ≤3.0 | ≤4.0 | ≤1.5 | ≤1.5 | |
Φ70-Φ100 | 0-+2.0 | 0-+2.0 | ≤2.0 | ≤3.0 | ≤2.0 | ≤2.0 | |
Φ105-Φ150 | -0.-+3.0 | -0.-+4.0 | ≤2.0 | ≤2.5 | ≤2.5 | ≤2.5 | |
Rectangle | Thickness 25-45 | 0-+1.5 | 0-+2.0 | ≤5.0 | ≤5.5 | ≤2.0 | ≤2.0 |
Thickness 50-100 | 0-+2.5 | 0-+2.5 | ≤4.0 | ≤4.5 | ≤2.5 | ≤2.5 | |
Thickness100-120 | 0-+3.0 | 0-+3.0 | ≤3.0 | ≤3.5 | ≤3.0 | ≤3.0 | |
Semicircle | Height40-55 | 0-+2.0 | 0-+2.0 | ≤4.0 | ≤4.5 | ≤2.0 | ≤2.0 |
Height60-150 | 0-+3.0 | 0-+3.0 | ≤3.0 | ≤3.5 | ≤2.5 | ≤3.0 | |
Table 2
JB/T10854-2008 | HT/LZ200 | HT/LZ250 | HT/LZ300 | QT/LZ450-10 | QT/LZ500-7 | QT/LZ600-3 | QT/LZ700-2 | |
JIS | FC200 | FC250 | FC300 | FCD450 | FCD500 | FCD600 | FCD700 | |
chemical composition | C | 2.8-3.85 | 2.8-3.8 | 2.8-3.8 | 3.0-3.9 | 3.0-3.9 | 3.0-3.9 | 3.0-3.9 |
Si | 2.0-3.2 | 2.0-3.2 | 2.0-3.2 | 2.0-3.4 | 2.0-3.4 | 2.0-3.2 | 2.0-3.2 | |
Mn | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.1-0.4 | 0.2-0.4 | 0.2-0.6 | 0.2-0.8 | |
P | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | |
S | ≤0.12 | ≤0.12 | ≤0.1 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
Mg | - | - | - | 0.02-0.1 | 0.02-0.1 | 0.02-0.1 | 0.02-0.1 | |
Mechanical properties | Tensile strength MPa | ≥180 | ≥220 | ≥260 | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 |
≥450 | ≥500 | ≥600 | ≥700 | |||||
125≤D≤350 | 125≤D≤350 | 125≤D≤350 | 125≤D≤350 | |||||
≥400 | ≥420 | ≥550 | ≥650 | |||||
Hardness HB | 140-190 | 170-220 | 180-260 | 130-180 | 140-200 | 150-220 | 180-260 | |
Elongation% | - | - | - | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 | |
≥10 | ≥7 | ≥3 | ≥2 | |||||
125≤D≤350 | 125≤D≤350 | 125≤D≤350 | 125≤D≤350 | |||||
≥7 | ≥5 | ≥2 | ≥1 | |||||
size | Circular | Φ25-Φ400 | Φ25-Φ150 |
| ||||
Square | 25*25-350*350 | 30*30-120*120 |
| |||||
Flat square | 25*40-25*400 | 25*40-30*220 |
| |||||
Semicircle | R25-R180 | R30-R150 |
| |||||
What is our materila , manufactur processing ?
1. Good raw material
2. Manufatur process with Gemeny technolidge

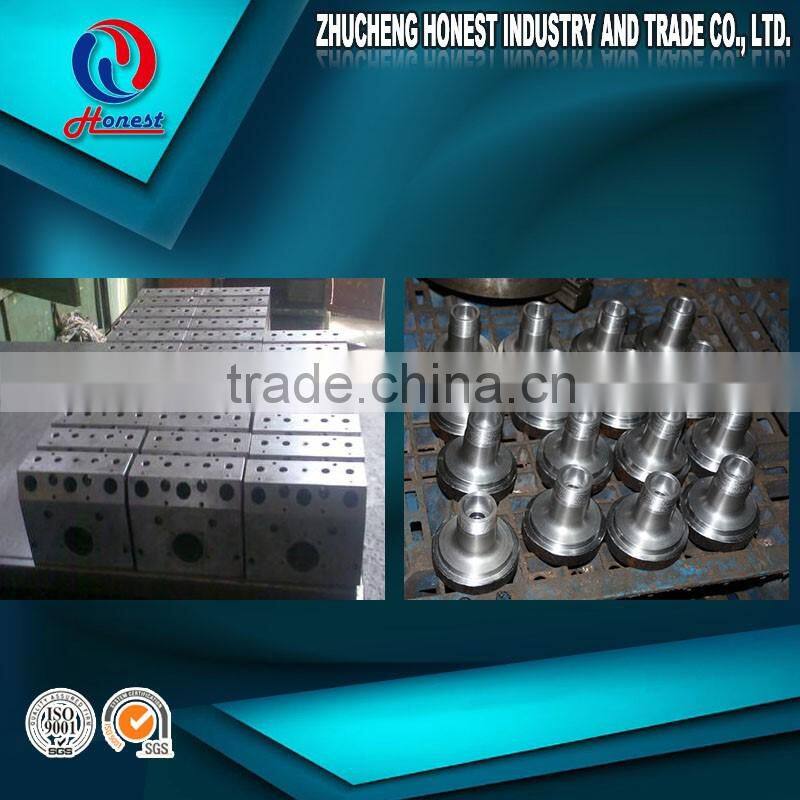

What is the application of cast iron bar?
Hydraulic valve | Modular valves, combination valves, valves, relief valves, hydraulic manifold |
Hydraulic parts | Piston, cover, cylinder cover, guide sleeve hydraulic motor housing |
Air conditioning compressor | Rolling piston rings, piston |
Machine tool | Side panels, rear panels, sleeves, pistons, cylinder end caps, columns, pressure rings, gears, bushings |
Printing Machinery | Mixing the ink roller, ink rails, guides, gear |
Textile Machinery | Gears, balance blocks, Oldham, cams, grooved shaft |
Engineering Machinery | Bushings, ring, kava, wear sleeve, ground cover, gears, shafts |
Oil drilling | Drillable packer / drillable bridge plug, suction pipe, drill pipe |
Railway vehicles | Bogie bushing, brake system bushings, shaft |
Mining Machinery | Wear ring sets, gears, shafts, engine cylinder |
Our honorific customers
American SCOT company
Japan Foundry Co
UCB UK
Norway OBORG
Shanghai Hitachi Electric Company
Gree Group Lingda Compressor Co., Ltd.
Bosch Rexroth (Changzhou) Co., Ltd
CSR Ministry of Railways
Wuhan riverbank vehicle plant
Qingdao Sifang Locomotive Plant (CSR)
Bundled with steel wire.
We are in the NEQQ (National Equities Exchange & Quotation) .
Q: What is the MOQ?
A:The MOQ is 10 tons.
