Home > Products > Materials-cast iron > Alloy Round Bar/low Carbon Deformed Iron for Sale
Alloy Round Bar/low Carbon Deformed Iron for Sale
- Qingdao port China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | OEM | |
| Model Number | DIA20MM-DIA450MM | Application | Industry | |
| Material | Iron | Dimensions | Standard |
Bundled with steel wire, or flat steel ribbon, or as required.
For 20 feet GP, 26 Tons is available.
For 40 feet GP, 30 Tons is available.
Product Description
Alloy Round Bar/low carbon deformed iron for sale
What is our Gray Iron Casting, Ductile Iron 65-45-12, Pearlitic Gray Cast Iron

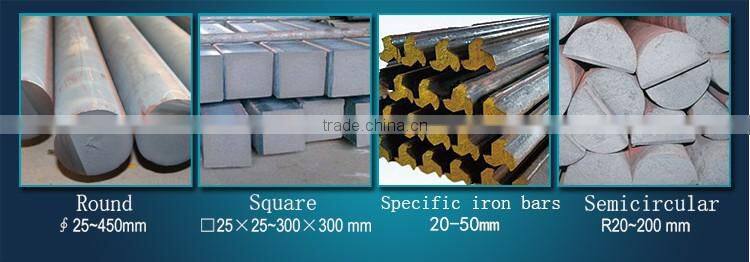

01 | Round profiles | Φ25 ~ 450mm |
02 | rectangular, square profile | 25 × 25 ~ 300 × 300 mm |
03 | regular polygon and rectangular profiles | 25 × 30 ~ 60 × 400 mm |
04 | semicircle profile | R20 ~ 200 mm |
05 | small diameter profile production | Φ25-50mm |
06 | Large Dia section and casting iron bars | Φ450mm ×500mm sheet |
07 | Pipe | Wall thickness 18-50mm |
08 | Symmetrical shaped cross-section |
|
09 | Asymmetrical shaped cross-section |
|
10 | Industry-specific iron bars |
|
11 | Special iron bars for machine skateboarding |
|
12 | Hydraulic valve block special iron bars |
|
13 | Etch resistant ductile iron alloy products |
|
14 | Glass molds for cast profiles products |
|
15 | Other industry-specific iron bars |
|
Table 1
Shape | Size(mm) | Section of tolerance(mm) | Deflection(mm) | Machining allowance to defects(mm) | |||
|
| Gray iron bars FC | Ball iron bars FCD | Gray iron bars FC | Ball iron bars FCD | Gray iron bars FC | Ball iron bars FCD |
Circular | Φ25-Φ45 | 0-+1.0 | 0-+1.5 | ≤4.0 | ≤5.0 | ≤1.0 | ≤1.0 |
Φ50-Φ65 | 0-+1.5 | 0-+1.5 | ≤3.0 | ≤4.0 | ≤1.5 | ≤1.5 | |
Φ70-Φ100 | 0-+2.0 | 0-+2.0 | ≤2.0 | ≤3.0 | ≤2.0 | ≤2.0 | |
Φ105-Φ150 | -0.-+3.0 | -0.-+4.0 | ≤2.0 | ≤2.5 | ≤2.5 | ≤2.5 | |
Rectangle | Thickness 25-45 | 0-+1.5 | 0-+2.0 | ≤5.0 | ≤5.5 | ≤2.0 | ≤2.0 |
Thickness 50-100 | 0-+2.5 | 0-+2.5 | ≤4.0 | ≤4.5 | ≤2.5 | ≤2.5 | |
Thickness100-120 | 0-+3.0 | 0-+3.0 | ≤3.0 | ≤3.5 | ≤3.0 | ≤3.0 | |
Semicircle | Height40-55 | 0-+2.0 | 0-+2.0 | ≤4.0 | ≤4.5 | ≤2.0 | ≤2.0 |
Height60-150 | 0-+3.0 | 0-+3.0 | ≤3.0 | ≤3.5 | ≤2.5 | ≤3.0 | |
Table 2
JB/T10854-2008 | HT/LZ200 | HT/LZ250 | HT/LZ300 | QT/LZ450-10 | QT/LZ500-7 | QT/LZ600-3 | QT/LZ700-2 | |
JIS | FC200 | FC250 | FC300 | FCD450 | FCD500 | FCD600 | FCD700 | |
chemical composition | C | 2.8-3.85 | 2.8-3.8 | 2.8-3.8 | 3.0-3.9 | 3.0-3.9 | 3.0-3.9 | 3.0-3.9 |
Si | 2.0-3.2 | 2.0-3.2 | 2.0-3.2 | 2.0-3.4 | 2.0-3.4 | 2.0-3.2 | 2.0-3.2 | |
Mn | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.1-0.4 | 0.2-0.4 | 0.2-0.6 | 0.2-0.8 | |
P | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | |
S | ≤0.12 | ≤0.12 | ≤0.1 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | |
Mg | - | - | - | 0.02-0.1 | 0.02-0.1 | 0.02-0.1 | 0.02-0.1 | |
Mechanical properties | Tensile strength MPa | ≥180 | ≥220 | ≥260 | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 |
≥450 | ≥500 | ≥600 | ≥700 | |||||
125≤D≤350 | 125≤D≤350 | 125≤D≤350 | 125≤D≤350 | |||||
≥400 | ≥420 | ≥550 | ≥650 | |||||
Hardness HB | 140-190 | 170-220 | 180-260 | 130-180 | 140-200 | 150-220 | 180-260 | |
Elongation% | - | - | - | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 | 30≤D≤120 | |
≥10 | ≥7 | ≥3 | ≥2 | |||||
125≤D≤350 | 125≤D≤350 | 125≤D≤350 | 125≤D≤350 | |||||
≥7 | ≥5 | ≥2 | ≥1 | |||||
size | Circular | Φ25-Φ400 | Φ25-Φ150 |
| ||||
Square | 25*25-350*350 | 30*30-120*120 |
| |||||
Flat square | 25*40-25*400 | 25*40-30*220 |
| |||||
Semicircle | R25-R180 | R30-R150 |
| |||||

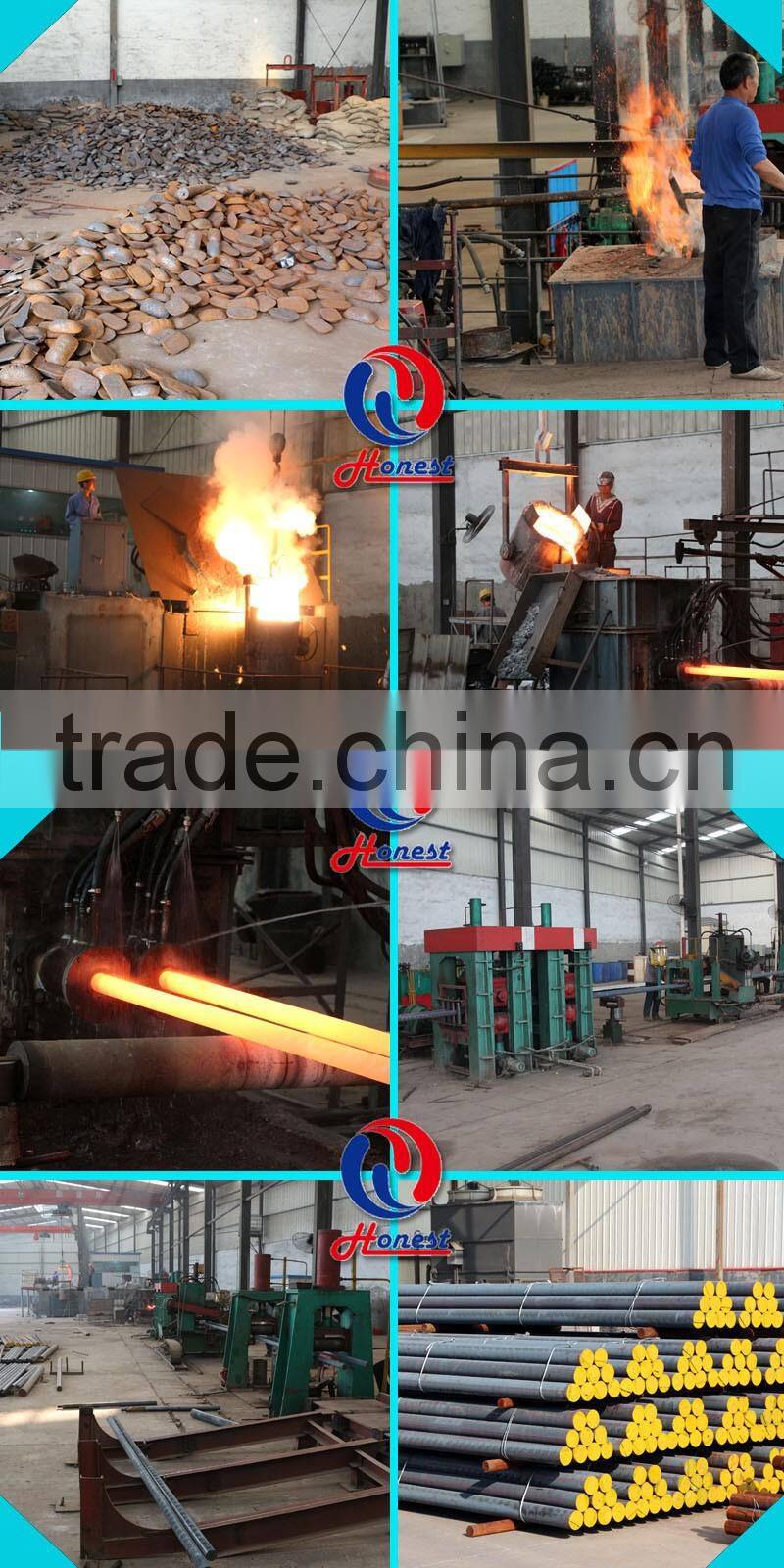

What is our materila , manufactur processing ?
1. Good raw material
2. Manufatur process with Gemeny technolidge
What is the application of cast iron bar?
Hydraulic valve | Modular valves, combination valves, valves, relief valves, hydraulic manifold |
Hydraulic parts | Piston, cover, cylinder cover, guide sleeve hydraulic motor housing |
Air conditioning compressor | Rolling piston rings, piston |
Machine tool | Side panels, rear panels, sleeves, pistons, cylinder end caps, columns, pressure rings, gears, bushings |
Printing Machinery | Mixing the ink roller, ink rails, guides, gear |
Textile Machinery | Gears, balance blocks, Oldham, cams, grooved shaft |
Engineering Machinery | Bushings, ring, kava, wear sleeve, ground cover, gears, shafts |
Oil drilling | Drillable packer / drillable bridge plug, suction pipe, drill pipe |
Railway vehicles | Bogie bushing, brake system bushings, shaft |
Mining Machinery | Wear ring sets, gears, shafts, engine cylinder |
Zhucheng Honest Industry and Trade Co., Ltd. is professional in supplying efficient products of paper making machinery , egg tray plant machinery, food washing machinery, environmental protection equipment and iron casting pipe etc and high technical service. we hope will have a good cooperation with you soon!

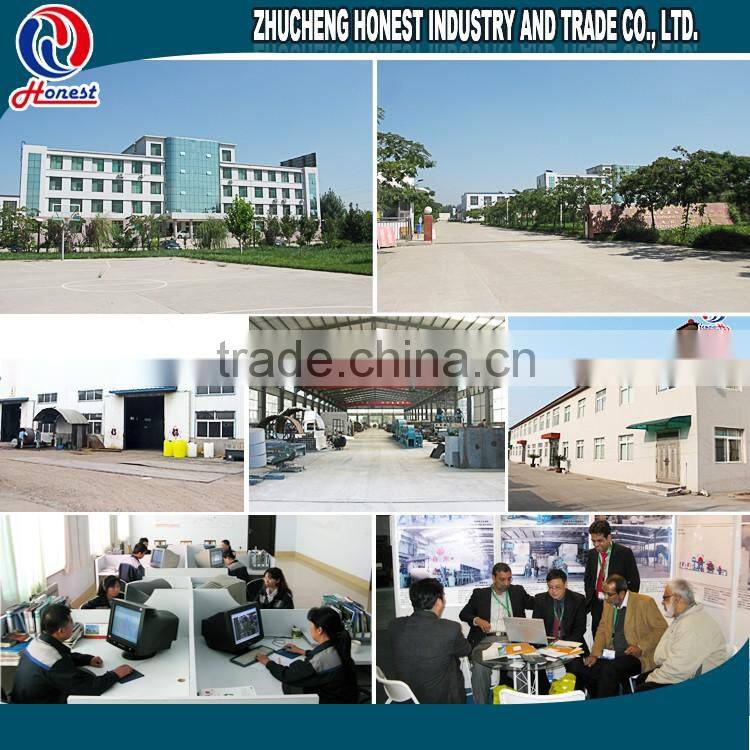

Company Profile
