Home > Products > CONSTRUCTION MACHINE > 4ton AC Electric Forklift Truck for Sale

4ton AC Electric Forklift Truck for Sale

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port chian main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	HELI	Model Number	CPD40
Type	Other, electric forklift truck	Power Souce	AC Motor
Rated Loading Capacity	4000kg	Fork Length	55mm
Fork Width	150mm	Overall Dimensions	275013502290
Certification	ISO9001:2000	After-sales Service Provided	No overseas service provided

Product Description

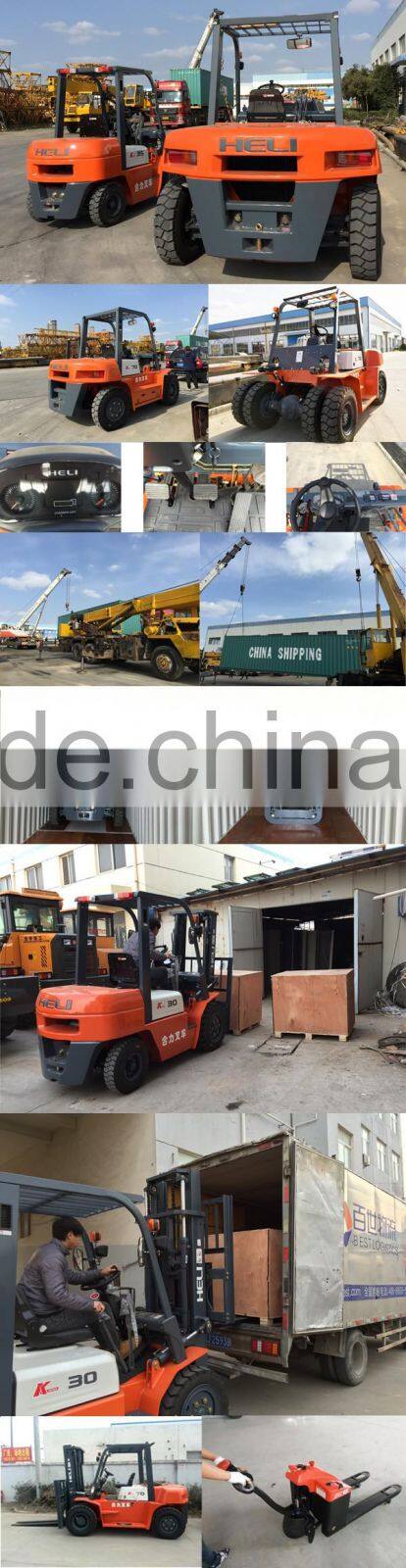

4ton AC electric forklift truck for sale

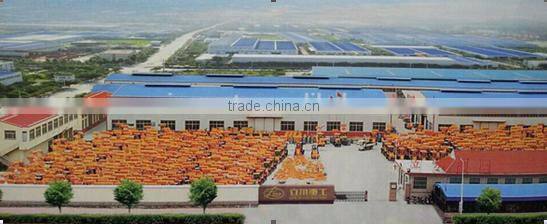

Company profile

Yancheng Foreign Machinery Parts Co., Ltd.

Yancheng Foreign Machinery Parts Co., Ltd. Mainly produces LIER - G series, D series, K

series, C series, such as four series, hundreds of differentiated products of wheel loader,

capable of producing ten thousand sets of production capacity and in the industry took the

lead through the ISO9001:2000 international quality management system certification and

the national construction machinery quality supervision and inspection center for review,

made of special equipment manufacturing license and received including cross-country

soft double car ", a number of utility model patent. always adhere to the "solidarity, forge

ahead, realistic and innovative" spirit of enterprise, strict quality control, strive for each

product into a boutique. and continuously forge ahead, to "create the first brand of small

loader" as the goal. Excellent product performance, good after-sales service, reasonable

product price for the company to win the broad market, Products are exported to Russia,

Brazil, Argentina, Australia, Iran, Singapore, New Zealand, and many other countries.

Our company's advantages:

*Hot working atmosphere

*Strong team spirit

*Pay attention to training

*Professional knowledge

*The advanced enterprise idea

*To participate the exhibition

*High qulity products

*Best after-sale service

*Rich products categories

*Own factory, reliable partner to prepare ordwithin shortest time.

Product Description

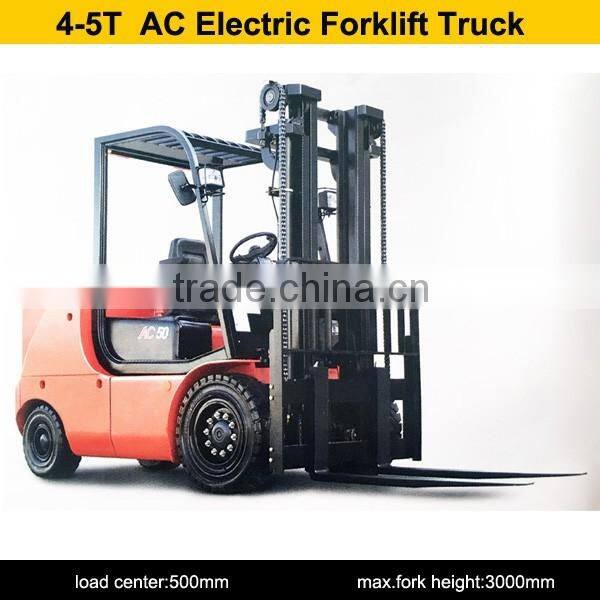

G Series 4-5T AC Electric Forklift Trucks
Model		CPD40	CPD45	CPD50
Configuration No.		B2	B2	B2
Load capacity	kg	4000	4500	5000
Load center	mm	500	500	500
Standard mast lifting height	mm	3000	3000	3000
Free hoisting height	mm	90	90	90
Overall height (upper frame protection)	mm	2290	2290	2285
Full length (without pallet fork)	mm	2750	2750	2750
Full width (before/after)	mm	1350/1250	1350/1250	1394/1320
Wheelbase	mm	1800	1800	1800
The minimum ground clearance (the door)	mm	140	140	135
The minimum turning radius (outer)	mm	2520	2520	2520
Least square channel width (1200 * 1200 mm tray, 20 mm gap)	mm	4420	4420	4420
Pallet fork length * width * thickness	mm	551501070	551501070	551501070
The door frame Angle(before/after)	deg.	5/10	5/10	5/10
Tire type(before/after)		Solid tire	Solid tire	Solid tire
Maximum speed (full/empty)	km/h	14/15	13.5/14.5	13/14
Maximum gradeability (full/empty)	%	16	15	13
Hoisting speed (full/empty)	mm/s	300/490	290/490	250/410
Battery capacity	V/Ah	80/600	80/650	80/650
Control mode (driving, pump)		Ac/dc control	Ac/dc control	Ac/dc control
The total battery (reservation)	kg	6450	6850	7225

TRADE TERMS

Price Term		(FOB Lianyungang)



Delivery Time		15-25 days from the date of signing the contract and receiving advance payment.



Payment Item		T/T for 30% advance payment and 70% balance payment before shipment



Terms of Shipment		FOB

Port of Shipment		Lianyungang Port, China

Date of Shipment		To be discussed later

Main features

1.Reliable AC Traction motor and AC Pump motor which are brushless and maintenance free.
2.Reliable AC Traction controller and AC Pump controller self-protecting and maintenance free.
3.Intertactive communication multifunctional LED meter with friendly interface, display mass information, password handing and maintenance free.
4.Standard CAN BUS interface for simple and reliable communication.
5. Travel speed and lifting speed closed loop control.
6.Powerful security, self-braking on ramp.
7. New type of low noise pump which is adopted the splitting-teeth technology.
8.New technology of dynamic signal load sensing in hydraulic system.
9.Travel speed normal/cutback choice function.
10.Electromagnetic compatibility reaches international standards.

Certificate

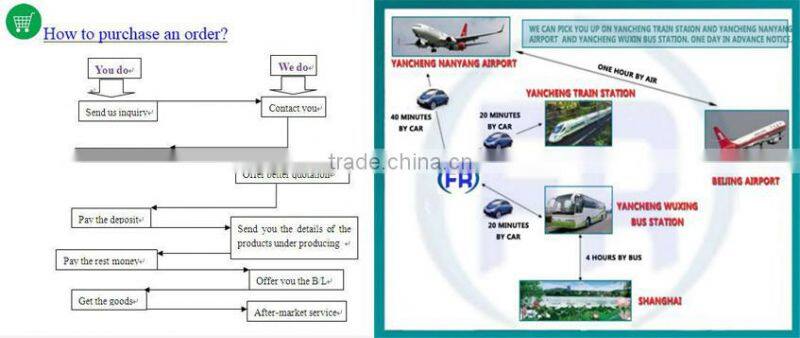

How to purchase
