Home > Products > Roll Forming Machine > Sanxing roof panel roll forming machine
Sanxing roof panel roll forming machine
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | Sanxing, Sanxing Flat Corrugated Roof Roll Forming Machine | |
| Model Number | flat sheet roll forming machine | After-sales Service Provided | Overseas service center available |
Product Description
Sanxing roof panel roll forming machine

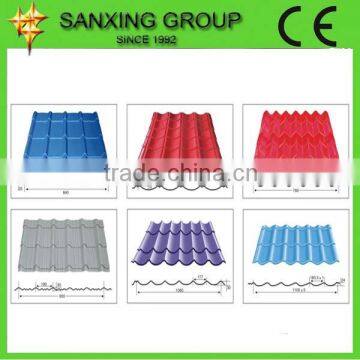

Panel profile:
Working Florwing:
Project:
Accessories:
Machine Components:
| De-coiler | 1 set |
| Forming machine | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
Machine Technical data:
No. | Spc. | |
1 | suitable material | Color Steel plate, galvanized sheet |
2 | Feeding width | 1000mm |
3 | Rows of rollers | 11 rows |
4 | Main power | 3.0kw |
5 | Hydraulic power | 3.0kw |
6 | Main frame | 250 H steel |
7 | Thickness of raw material | 0.3-0.8mm |
8 | Transportation system | Chain transportation |
9 | Thickness of chain | 1.0inches |
10 | Productivity | 8-10m/min |
11 | Out diameter of shaft | 70mm (solid shaft) |
12 | Material of shaft | Material of shaft |
13 | Roller material | 45# steel polished and coated with chrome HRC55-60° |
14 | Shear mould | Gr12 |
15 | Voltage | 380V 50Hz 3phases |
16 | Control system |
PLC Frequency Control System with touch screen |
17 | Machine size | 5200mm*1600*1200mm |
Naked ,By vessel 1*20GP
Our company
Our Certificates
Our Customers
Q: Are You the factory or trade company?
A:We are the factory,found in 1992, we work on alibaba export for 8 years.
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T is first
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 18 month, and support lifelong service.
