600-305 Beamless arch sheet forming equipment

Introduction

Arch sheet roofing known as Truss less Roofing or Self Supported Roofing system. Known for its customer focus and innovative products, backed by years of Industry knowledge. We are the first manufacture of the machinery in China with 20 years experience. Now, we have series machinery of 3 types, 15 models in total.

Technology

On site Production and installation of Self Supported curved roofing without any structure, enables faster and leak proof roofing systems, thus ensuring utmost flexibility in work and design.

Easy & Quick Installation

As the production is carried out on site, the installation will be faster , take an example, 1500 square meters area in just 12 hours, enabling to finish the project in very quick time.

Durability and Resistance to Corrosion

Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized Steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration. It is of High tensile Steel and comes in spectrum of colors, to enhance the appearance, life and value of the building; specially designed sewing machines eliminate use of fasteners and thus ensure 100% leak proof roofing.

Application

Using this machinery can use in the construction of warehouses, workshops, hangars, barracks, equipment storage, gymnasium, and low cost housing , also in the production of boats, vehicles, and highway guardrails, etc.

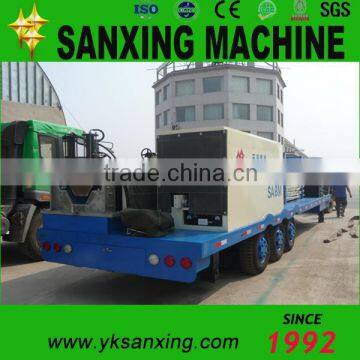

ARCH ROOF/CURVED ROOF MACHINE

MAIN TECHNICAL SPECIFICATION
Size: 9000mm × 2250mm × 2300mm
Total Weight: about 10000KG

Main Motor Power: 18.5KW

Forming power is 7.5kw ;  Bending power is 4.0kw;

Cutting power is 4.0kw;     Conical power is 3.0kw

Working Speed:     Straight sheet: 15m/min
                                  Arch sheet: 13m/min
                                  Sewing: 6m/min

Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Step of rollers: 13 steps


We provide you all the relevant accessories for free, with those you can begin to do projects immediately.
