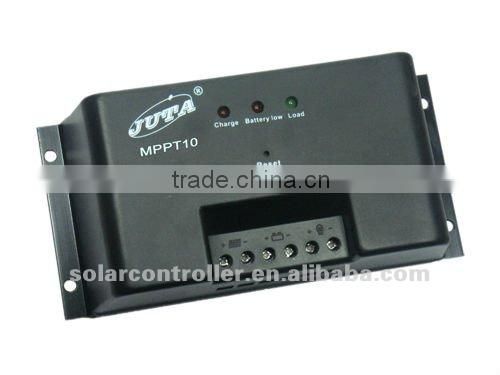

MPPT 10A 12V or 24V Solar Charge Controller

FOB Price

US$ 30 - 46 / Set

10 Sets(Min. Order)

Port Shanghai/Wuhan/Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	JUTA
Model Number	MPPT-10	Application	Voltage Controller
Rated Voltage	12V	Maximum Current	10A

Product Description

Specifications

MPPT controller1.Overcharge protection
2.Short Circuit Protection
3.Overloading Protection
4.Battery Reverse Protection

Feature: The most important feature of this controller is intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller could increase 10%-30% electrical power using efficiency from solar panel.

Function: This MPPT controller is not only have above mentioned special function, at the same time including completely Protecting and Controlling functions:

Overcharge protection

Overdischarge protection

Battery Reverse Current Protection

Overloading Protection

Short Circuit Protection

Reverse Polarity Connection Protection

Technical Data

Model	MPPT-10	MPPT-30
Rated voltage	DC:2V / 24V / 48V
Max current	10A	15A,20A,30A
No load loss	≤45mA/12V / 24V ≤30mA/48V
Voltage drop	≤300mV
Max voltage of solar panel	23V/12V,×2/24V,×4/48V
Full charge cut	14V/12V,×2/24V,×4/48V(25°C)
Low voltage cut	10.5V/12V,×2/24V,×4/48V
Reconnected voltage	12.6V/12V,×2/24V,×4/48V
Temperature compensation	-3mV/cell.°C
Efficiency	95%-97%
Wire area	1~2A/ mm²
Electrical power using efficiency	Can increase 10~30%
Net Weight	0.55Kg	0.65Kg
Dimension	188×93×55mm	188×118×55mm
