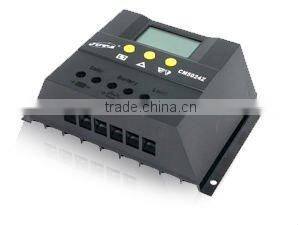

CM5048 50A 48V PWM Solar Charge Controller

FOB Price

US$ 62 - 71 / Set

5 Sets(Min. Order)

Port Shanghai/ Wuhan/ Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	JUTA
Model Number	CM50	Application	Charger Controller
Rated Voltage	24V	Maximum Current	50A

Product Description

Specifications

1,multi-functional protection
2,LCD display
3,intelligent PWM charge mode
4, low voltage controller for home use

CM series controller is a kind of intelligent, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements. CM series controller has following features:
Image of LCD graphic symbol
Simple button operation
Automatic Identification System Voltage level
Intelligent PWM charge mode
Automatic Temperature Compensation
Adjustable charge-discharge control parameters
Settable Operating mode of Load
Overload, Short Circuit Protection
Remote monitoring and control function (custom)
Battery reverse-discharge protection
  Battery Low Voltage Disconnection (LVD)
Battery reverse connection protection
Accumulated function of charge and discharge Ampere hours

Data Model	CM5024Z	CM5048Z	Data model	CM5204Z	CM5048Z
Rated current	50A		Installation cable area	>3 AWG(<25square centimetre)
Rated voltage	12V/24V	48V	Operating temperature	-20~50°C
Maximum voltage of solar panel	50V	100V	Storage temperature	-30~70°C
Float voltage	13.7V/27.4V	54.8V	Humidity requirement	<90%,no condensation
Low Voltage Disconnection	10.7V/21.4V	42.8V	size	130mm188mm62mm
Low voltage Recollection	12.6V/25.2V	50.4V	Mounting hole spacing	90mm*178mm-Φ5
No load loss	<30mA		weight	590g
Loop voltage	<200mA
Charging mode	PWM mode
Temperature compensation	-4Mv/Cell/°C
notes	Model suffix "Z" represent automatic identify system voltage level, "T" represent controller with remote monitoring.
