Wire Rope Clamp
US$ 0.1 - 10
/ Piece
1 Piece(Min. Order)
- QINGDAO
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Dawson/OEM | |
| Model Number | DSDFWRC |
Product Description
Specifications

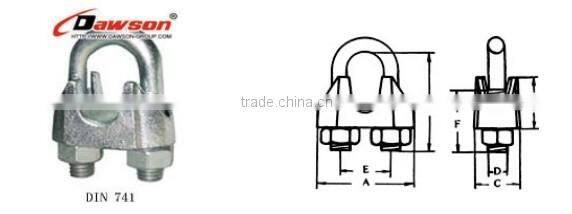

DIN741 Galvanized Wire Rope Clips1.Material: Carbon Steel,steel
2.Sizes:3mm-40mm
3.Crafts: drop forged
Wire Rope Clamp - Dawson Group Ltd. - China Manufacturer Supplier
1.Material: Carbon Steel,steel
2.Sizes:3mm-40mm
3.Crafts: drop forged
ITEM NO | SIZE mm | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
DSGMWC4103 | 3 | 21 | 10 | 10 | 4 | 9 | 12 | 16.6 |
DSGMWC4105 | 5 | 23 | 10 | 11 | 5 | 11 | 13 | 19.65 |
DSGMWC4106 | 6.5 | 26 | 11 | 12 | 5 | 13 | 15 | 23.65 |
DSGMWC4108 | 8 | 30 | 15 | 14 | 6 | 16 | 19 | 28.85 |
DSGMWC4110 | 10 | 34 | 17 | 18 | 8 | 19 | 22 | 35 |
DSGMWC4111 | 11 | 36 | 18 | 19 | 8 | 20 | 22 | 37 |
DSGMWC4113 | 13 | 40 | 21 | 23 | 10 | 24 | 30 | 46.24 |
DSGMWC4114 | 14 | 44 | 22 | 23 | 10 | 25 | 30 | 48.24 |
DSGMWC4116 | 16 | 50 | 26 | 26 | 12 | 29 | 33 | 52.5 |
DSGMWC4119 | 19 | 54 | 30 | 29 | 12 | 32 | 38 | 64.5 |
DSGMWC4122 | 22 | 61 | 34 | 33 | 14 | 37 | 44 | 72.5 |
DSGMWC4126 | 26 | 65 | 37 | 35 | 14 | 41 | 45 | 82.5 |
DSGMWC4130 | 30 | 74 | 43 | 37 | 16 | 48 | 50 | 95.6 |
DSGMWC4134 | 34 | 80 | 50 | 42 | 16 | 52 | 55 | 105.6 |
DSGMWC4140 | 40 | 88 | 55 | 45 | 16 | 58 | 60 | 125.6 |
