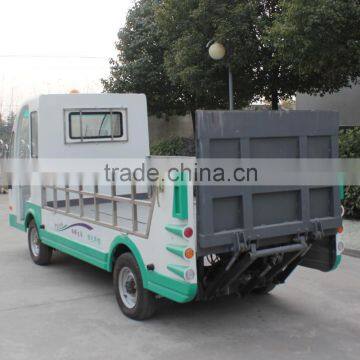

2015 new design mini electric garbage truck
- 5000 Unit / Units per Month
- Shanghai or Nanjing
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Volume | 1000 - 3000L | |
| Size | 3930*1500*1960mm | Gross Vehicle Weight | 1180 | |
| Place of Origin | Anhui, China | Brand Name | Highstar | |
| Model Number | ZT4308 | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features
Our garbage collection truck, Electric ,garbage barrel collection,ZT4308, 48V/5KW,Max. loading weight 800kgs, CE approved has following features:
ØWith light system including headlight, turning light, brake lights, fog lights
ØDigital meter with various indicators
ØWith radio and speaker
ØSteel framework chassis with anti-rust treatment of sand blasting and painting
ØLaminated front windshield with Wiper
ØClosed cabin with steel frame and FRP cover and glass door.
ØSuspension with shock absorber and leaf spring
Ø4 wheel hydraulic brake and hand park brake, with vacuum booster
ØManual drive system
Our garbage collection truck, Electric ,garbage barrel collection,ZT4308, 48V/5KW,Max. loading weight 800kgs, CE approved can be used in many places.
- Golf Course
- Resort
- Hotel
- Theme Park
- Amusement Park
- Garden
- Residential Community
- Inside factory
- Shopping mall
- Museum
- Campus
- Station, Port
- Any place where a green, quiet and cost effective vehicle is needed.
Product Description
Key Components
Item | Description |
Controller | imported from USA directly |
Motor | AC motor Chinese brand |
Battery | Lead Acid battery maintenance free |
Charger | 72V/30A |
Performance
Item | Description |
Passenger Capacity | 2 |
Range (loaded) (km)* | up to 80 |
Max. speed (km/h) | up to 30 |
Min. turning radius (m) | 6 |
Max. climbing ability(loaded) | up to 20% |
Max. loading weight (kgs) | 800 |
Charging time (hour) | 8 |
Dimensions
Item | Description |
Overall dimensions (mm) | 4600*1470*2050 (LxWxH) |
Rear garbage box dimensions (mm) | 2970*1280*1200 (LxWxH) |
Min.ground clearance (mm) | 170 |
Wheelbase (mm) | 2400 |
Front wheel tread (mm) | 1200 |
Rear wheel tread (mm) | 1200 |
Body and Frame
Item | Description |
Frame & Chassis | Welded steel framework with sand blasting and painting |
Cabin | Aluminum frame with FRP cover sheet and glass window |
Front windshield | Laminated glass with wiper |
Seat | Reborn sponge with artificial leather, |
Floor | Skid proof leather |
Rear garbage box | Steel material, with hydraulic lifting function, with side lifting function |
Battery sliding system | Steel frame with sliding wheel |
Beverage holders | 1 cups holders |
Side rear view mirror | 2pcs, manual adjustable |
Electric System
Item | Description |
Lights | 12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light) |
Horn | Electric horn, 12V |
Reverse buzzer | Electric, 12V |
DC/DC converter | 72V/12V |
Audio system | Radio with MP3 receiver, with two waterproof speaker |
Digital Meter | with Current meter, volt meter, speedometer and various indicators |
Steering and Suspension
Item | Description |
Brake System | 4-wheel hydraulic drum brake with hand park brake, with vacuum booster |
Accelerator | Resistance type, stepless speed change |
Front suspension | non-independent suspension, cylinder hydraulic vibration absorber and leaf spring |
Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Transmission system | Clutch, 4F+1R gear box, transmission shaft |
Wheel & Tyre | 175R13C tubeless tire, 4J*13 steel rim |
Packaging & Shipping
Our electric garbage collection truck, Electric ,garbage barrel collection,EG6032X, 48V/5KW,Max. loading weight 1500kgs, CE approved
Container loading qty | Assembled | Refer Picture |
20'ft GP | 1 |
|
40'ft GP | 2 | |
40'HQ | 2 |
