500w pure sine wave Inverter with MPPT controller fan
- Guangzhou
- T/T D/P D/A Credit Card PayPal
You May Like
-
500w solar inverter with MPPT controller circuit diagram
-
1000w 12vdc 220v Ac Dc inverter with MPPT controller
-
12vdc 24vdc solar power inverter with MPPT controller 1000w
-
1000w 2000w 3000w Hybird inverter with MPPT controller
-
1000w 2000w 3000w Factory price of inverter with MPPT controller batteries
-
12/24v 12/24v inverter circuit diagram solar inverter
Supplier's Choice
Product Details
| Place of Origin | China | Brand Name | Solarpro/solarin | |
| Model Number | SPCI3000 | Output Power | 1 - 200KW | |
| Output Type | Single | Size | 645*435*245m | |
| Weight | 24KG | Input Voltage | 12V/24V/48V | |
| Output Voltage | 110V/220V/230V/240V | Type | Other, DC/AC Inverters, DC to AC solar inverter | |
| Output Frequency | 50Hz/60Hz | Output Current | Load |
Product Description

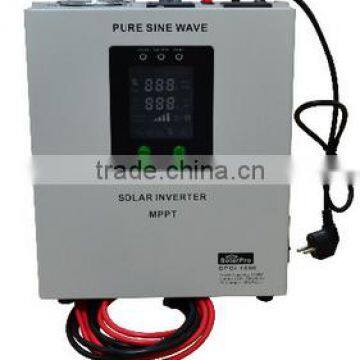

3000W Inverter with MPPT controller fan
SPCI3000 Solar Inverter Integrated with MPPT Controller
This item is a home use Solar Generator of AC output. Be able to provide power for various monrmal power AC output machines, TV, Fan,air-condition, refrigerator. wash machine, water heater,and other digital products. The product functions and features are as follows:
1.Built in MPPT Solar charge controller.the MPPT Charging mode in series controlled by MCU enable to prolong the life-time of the battery;
2.Solar or AC Priority Optional
3.AC 220V output socket x2pc;
4.AC Charge current adjust,10A or 15A Optional
5. Comprehensive Under-voltage protection, anti-anti-charge, overcharge, over-current protection
6.External battery and solar photovoltaic panels to meet customers’ demand for electricity usage;
7.The temperature difference between the cooling fan,makes the machine work radiating more timely, improve the equipment’s life.
8.After the machine has an output over-current protection,delay output automatic reply.
Plate Explanation:
1.LCD Display 2. AC Input & AC Output
---Status indicator 3. PV solar input
---Charging indicator 4. Circuit Beraker protection
---Fault indicator 5. Battery Input
---Function buttons
6. AC charge current adjust buttons
7. Solar or AC Priority adjust buttons
8. Battery NO/OFF buttons
9. Solar ON/OFF buttons
10.Fan for cooling
11. AC output socket
Packing Overview:
3000W Inverter with MPPT controller fan
Technical Data for SPCI3000 Solar Inverter Integrated with MPPT Controller
| Solar Intergrated Off-Grid Inverter | |||||||||
| Model | 500va | 800va | 1000va | 1500va | 2000va | 2500va | 3000va | 5000va | |
| Power Capacity | 300w | 500w | 700w | 1050w | 1400w | 1800w | 2100w | 3500w | |
| Battery Voltage | 12vdc | 12vdc | 12vdc | 24vdc | 24vdc | 24vdc | 48vdc | 48vdc | |
| Working mode | PV(Photovoltaic priority)/AC (AC priority) Optional | ||||||||
| PV | Input volt range | 12VDC-25VDC | 24VDC-50VDC | 48VDC-100VDC | |||||
| Max.charge current | 10A/20A/30A/40A Optional | 60A | |||||||
| nversion effciency | ≥98% | ||||||||
| Display | Panel indicator light | LED Graphic Screen LED lights | |||||||
| Mains status (Optional) | Input volt range | 140Vac-275Vac | |||||||
| Input Frequency range | 45-65HZ(Automatically transfer to inverter power when over frequency | ||||||||
| Oput volt range | 190Vac-245Vac | ||||||||
| Input PF.(AC/DC) | 98% | ||||||||
| Efficiency | Mains mode≥96% | ||||||||
| Charge current | 10A/15A | ||||||||
| Mains overload | warning until decrease load | ||||||||
| Short cricuit | yes | ||||||||
| Inverter output | Inverter output volt | 220v±3% | |||||||
| Output frequency | 50Hz/60Hz±0.3Hz frequency adaptive | ||||||||
| Output power factor | ≥0.8 | ||||||||
| Wave from distortion | linear load≤3% | ||||||||
| PV-AC transfer | 4Ms typical value Max.6Ms | ||||||||
| Efficiency | Inverter mode≥80% | ||||||||
| Inverter overload | 110%-130% shutdown at 30s,130%-150% shutdown at 3s | ||||||||
| Short cricuit | System automatically shut down | ||||||||
| Alarm | Mains abnormal | 1 time/1S,silence auto after 5S | |||||||
| Low battery | 1 time/1S and flash battery last grid | ||||||||
| Overload | 1 time/1S and display"overload" grid | ||||||||
| Communication interface | RS232(optional) | ||||||||
| Others | Output sockets | Universal sockets/customized | |||||||
| Surge protection | Optional | ||||||||
| Ambient temperature | 0℃~40℃ | ||||||||
| Ambient humidity | 10%~90%(Non Condensed) | ||||||||
| Noise | ≤50dB | ||||||||
3000W solar inverter off grid,solar inverter price ,solar inverter
Product Series
2 Year Warranty of the Solar inverter
The life time of the off grid inverter is over 10 years,
Strong resistance of the load and built in MPPT solar controller
We are sure to offer the world-wide customers with good After-Sales Service.
Please contact us if you have any question or any problem on our products, we are always here at your service!
All the problems will answered within 48 hours.
1. Q: Are you a factory or trading company?
A: We are a manufacturer and exporter for years.
Especially for solar inverter,Price off grid solar system,off grid solar inverter for home use .
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.if u in Guangzhou,take the metro line 2 to GZ South Railway Station,then we will pick up from there.
3. Q: Does your company also provide other solar products except solar charge controller regulator?
A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for bulk order.
5. How can I get a sample?
A: Please call us or send email for asking the samples. or place the order on alibaba,we will check the freight cost and confrim the order ,then arrange the delivery for u
Ben Lin : Mobile Number: 86-13697413612
Payment Terms : T/T and Western Union, L/C are the payment methods we accept at present.
Inverter with MPPT controller fan
Shipping:
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number
for easy contacting from shipping company officer.
GuangZhou Goldensun Solar Equipment Factory was established in 2007 based in Guangzhou, China. Goldensun is the one to have effectively applied an advanced technology to utilize the sun's radiation and converting it into green energy. We offer world class energy efficient/renewable energy solutions for solar lighting, residential solar housing systerms, solar farming, solar street light, and solar power Backup system.
Our mission is to produce clean renewable energy to fulfill the growing demands of the market, especially for Africa, Middle East and South East Asia. Our lighting and power solutions have been successfully implemented in many power projects over the world.
More importantly, we believe that our products also serve as a vital foundation for a sustainable future for generations that will follow. With our core competency power reliability and sustainability, we are confident of providing right solar solutions to support you and change the life.
