Home > Products > Solar Controller > solar charge controller 30A 48V, solar charge,solar charge controller 30A
solar charge controller 30A 48V, solar charge,solar charge controller 30A
- Guangzhou/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Solarin | |
| Model Number | CM3048 | Application | Charger Controller | |
| Rated Voltage | 48V | Maximum Current | 30A |
Product Description
solar charge controller 30A 48V,solar charge,solar charge controller
Features:
PWM series controller is a kind of intelligent, multi-purpose solar charge and discharge cotroller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements. SI series controller has following features:
- Image of LCD graphic symbol
- Simple button operation
- Sutomatic Identification System Voltage Level
- Intelligent PWM charge mode
- Automatic Temperature Compensation
- Adjustable charge-discharge control parameters
- Settable operating mode of load
- Overload, short circuit protection
- Remote monitoring and control function(custom)
- Battery reverse-discharge protection
- Battery low voltage disconnection(LVD)
- Battery reverse connection protection
- Accumulated function of charge and discharge ampere hours
solar controller
Technical data
Model | CM3024Z | CM3048 | Model | CM3024Z | CM3048 | ||
Rated Current | 20A | 30A | 20A | 30A | Installation cable area | Not more than 7# AWG (16mm2) | |
Rated Voltage | 12V/24V | 48V | Operating Temperature | -10~60Centigrade | |||
Open Circuit Voltage of solar panel | Not more than 50V | Not more than 100V | Storage temperature | -30~70Centigrade | |||
Low Voltage Disconnection(LVD) | 10.7V/21.4V | 42.8V | Humidity requirements | Not more than 90%, no condensation | |||
Float Voltage | 13.8V/27.6V | 55.2V | Size | 90 mm×188 mm×48 mm | |||
Low Voltage Reconnection(LVR) | 12.5V/25.0V | 50.0V | Mounting hole spacing | 60 mm×178 mm --Φ5 | |||
No load loss | Not more than 30mA | weight | 360g | ||||
Loop Voltage Drop | Not more than 170mV | Notes | Model suffix “Z” represent automatic identify system voltage level, “T” represent controller with remote monitoring. | ||||
Charging Mode | PWM mode | ||||||
Temperature Compensation | -4mV/Cell/Centigrade | ||||||

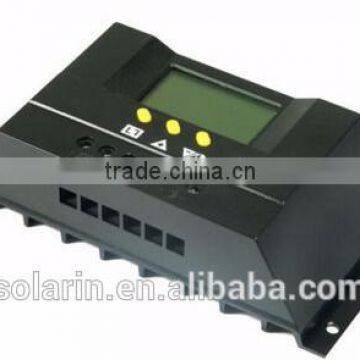

Product Images
solar controller
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q: Does your company also provide other solar products except solar charge controller regulator?
A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.
4. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: +86 18613076668.
5. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
solar controller
Buy Solar Controller info:
Payment Terms
T/T, L/C are the payment methods we accept at present.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
