Product Details
| Place of Origin | Guangdong, China | Brand Name | G-Sundries | |
| Model Number | TK50 | Application | Charger Controller | |
| Rated Voltage | Other, 12/24V | Maximum Current | 50A |
Product Description

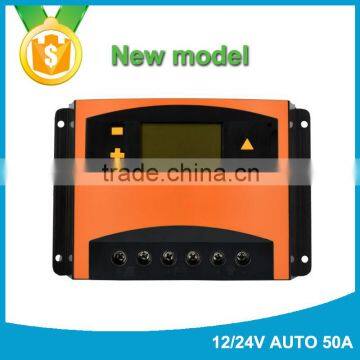

50A manual pwm solar charge controller manual,mppt solar charge controller
Product Description
This intelligent,multi-purpose solar charge and discharge controller has a very friendly interface of fixed LCD display.Various control parameters can be flexibly set,fully meet your various application requirements.
Features:
1.Vivid LCD graphic symbols
2.Simple button operation
3.Automatic identification of system voltage level
4.Intelligent PWM charging mode
5.Adjustable charge-discharge protection
6.Automatic temperature compensation
7.Settable operation mode of load
8.Battery reverse-discharge protection
9.Battery low voltage disconnection(LVD)
10.Battery reverse connection protection
11.Overcurrent protection
12.Usb output
| Model | TK5024Z |
| Rated current | 50A,60A |
| Rated voltage | 12V/24V |
| Maximum voltage of solar panel | ≤50V |
| Float voltage | 13.7V/27.4V |
| Low Voltage Disconnection | 10.7V/21.4V |
| Low Voltage Reconnection | 12.6V/25.2V |
| No load loss | <30mA |
| Loop voltage drop | ≤200mV |
| Charging mode | PWM Mode |
| Temperature compensation | -4mV/Cell/℃ |
| Installation cable area | >3# AWG (<25mm2) |
| Operating temperature | -20℃~50℃ |
| Storage temperature | -30℃~70℃ |
| Humidity Requirement | ≤90%, No Condensation |
| Size | 130mm×188mm×62mm |
| Mounting hole spacing | 98 mm×178 mm --Φ5 |
| Weight | 590g |
50A manual pwm solar charge controller manual
| Packaging Details: | Packing in G-Sundries or Neutral color box 24pcs/Carton Dimention:480*450*390mm G.W.:19.7Kg |
|---|---|
| Delivery Detail: | within 5 days after receiving the deposit |
By Sea | Delivery from Guangzhou or Shenzhen seaport |
By Air | Departure from Guangzhou Airport |
By Express | Post by DHL, EMS, UPS, TNT. |
