ADSL2+ Over POTS/ISDN Splitter Module for 3M
- tianjin
- T/T Money Gram Credit Card
You May Like
Product Details
| Brand Name | corelogic | Model Number | CLSJ-XXXJ1 | |
| Place of Origin | Beijing, China |
Product Description
Brief introduction
•CoreLogic can provide the broadest ADSL2+ splitter solution for ADSL2+ communication technology.
•CLSJ-XXXJ1 is a highly integrated ADSL2+ over POTS/ISDN splitter module,which is suitable for 3M BRCR integrated wiring frame block IDC.
•Complies with many kinds of standards.
•With high cost performance.
Splitter Performance
Test item | Condition/Requirement |
Impedance | POTS:600Ω/900Ω/OptionB |
DC Current | 100mA |
DC series resistance for POTS | ≥50 Ω |
DC series resistance for ISDN | ≥12.5 Ω |
Insertion loss /distortion for POTS | 1kHz≤1.0dB |
¦a(0.2-4kHz)-a(1KHz) ¦≤1.0dB | |
Insertion loss /distortion for ISDN | 1-40kHz≤1.5dB |
40-80kHz≤2.0dB | |
Return loss for POTS | 0.2-2.0kHz ≥18.0dB |
2.0-3.4kHz≥14.0dB | |
Return loss for ISDN | 1-40kHz≥16.0dB |
40-80kHz≥14.0dB | |
ADSL insertion loss for POTS | 32-50KHz≤3.0dB |
50-2208KHz≤1.0dB | |
ADSL insertion loss for ISDN | 120-170KHz≤3.0dB |
170-2208KHz≤1.0dB | |
Stop band attenuation for POTS | 32-138KHz≥45.0dB |
138-2208KHz≥55.0dB | |
Stop band attenuation for ISDN | 138-150KHz≥55.0dB |
150-2208 |
Applied Standards
YD-T 1187-2006
ITU-T G.992.1
ETSI TS 101 952-1-1
ETSI TS 101 952-1-3
ETSI TS 101 952-1-4
RoHS compliant
Operation Environment
Temperature:
Operating: -30°C to +70°C
Storage : -40°C to +70°C
Humidity: 0%-80% non-condensing

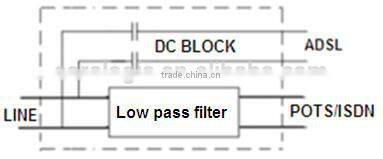

Circuit Diagram

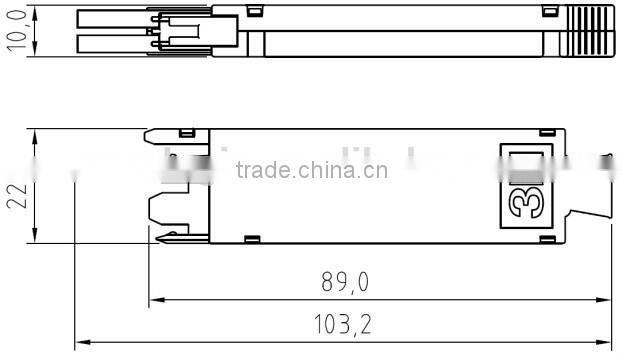

Outline Dimensions
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE

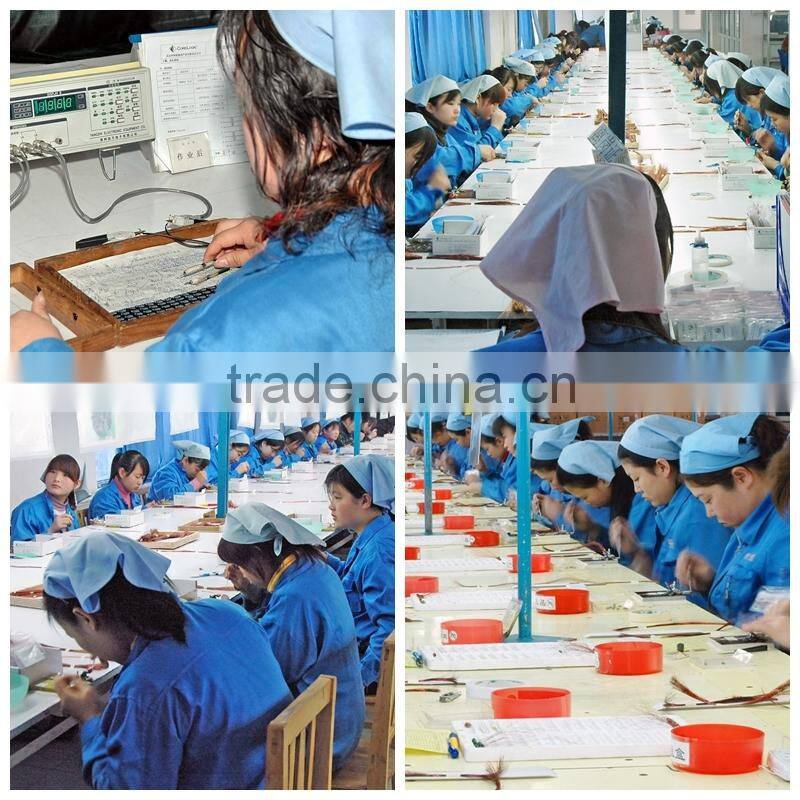

Production Line

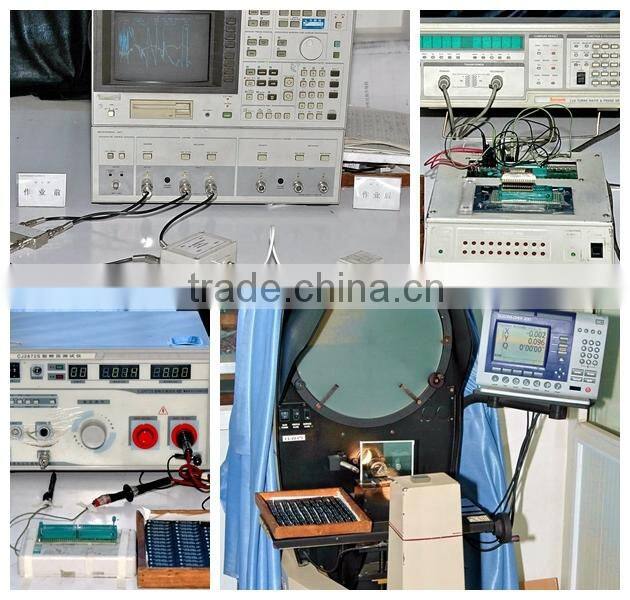

Machine and test equipment:

Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
