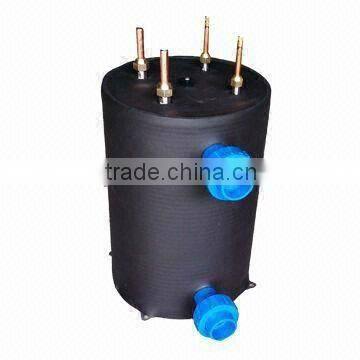

30KW+30KW Heat exchanger for double system heat pump with PVC shell corrugated titanium coil

FOB Price

US$ 50.5 - 2,002.98 / Unit

100 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.green material with RoHs Certification
2.very strict testing for water or gas leakage
rrugated tube for strong power

Specification for all heat pump Hxs:

Size	titanium tube	water inlet and outlet	titanium tube working prssure	PVC shell working pressure	each VOL
Size	titanium tube	water inlet and outlet	titanium tube working prssure	PVC shell working pressure	(CBM)
1/3HP/1/2HP	OD160.6mmL3.3M	32mm	3.0Mpa	0.5Mpa	0.016
3/4HP/1HP	OD160.6mmL5.3M	40mm	3.0Mpa	0.5Mpa	0.028
1.5HP/2HP	OD160.6mmL9M	50mm	3.0Mpa	0.5Mpa	0.043
1HP	OD12.70.6mmL5M	50mm	3.5Mpa	0.4Mpa	0.016
1.5HP	OD12.70.6mmL7.5M	50mm	3.5Mpa	0.4Mpa	0.017
2HP	OD12.70.6mmL11M	50mm	3.5Mpa	0.4Mpa	0.017
3HP	OD12.70.6mmL15.5M	50mm	3.5Mpa	0.4Mpa	0.021
5HP	OD190.6mmL20M	50mm	3.5Mpa	0.4Mpa	0.088
10HP	OD190.6mmL40M	50mm	3.5Mpa	0.4Mpa	0.098
15HP	OD191.0mmL60M	50mm	3.5Mpa	0.4Mpa	0.199
20HP	OD191.0mmL80M	50mm	3.5Mpa	0.4Mpa	0.186
30HP	OD190.55mmL120M	50mm	3.5Mpa	0.4Mpa	0.271

Remark:1HP=3.5KW 1Mpa=10bar

certification:RoHs

refrigerant:R22 /R134/R407/R41OA .

Product detail
inside: titanium coil
titanium tube material	seamless tube--TA1
titanium tube diameter	12.7mm----30mm(normal use)
titanium tube thickness	0.55mm----3.0mm(normal use)
outside: PVC case
PVC cover material	enviromental protection
PVC tube diameter	OD110mm----OD400mm
PVC tube thickness	2.7mm----15.3mm
connection
gas inlet and outlet	titanium thread and copper nut/tube
water inlet and outlet	plastic piston
testing/others
water pressure	0.25----1.0Mpa(2.5---10bar)
gas pressure	3.5Mpa
PVC temperature	≤45°C
shell leakage	no
tube leakage	no
pack	0.6mm thick gray sponge
corrosive or not	anti-corrosion
use	pool /heat pump/ air conditioner/chillar etc

New Mould cap Hxs Specification:

special beautiful appearance with excellence quanlity---easy for installing

inside function

corrugated tube certification:

item	heat exchanger coil-titanium corrugated tube
tube type	titanium seamless tube
diameter	12.7mm----25mm
power	can be the 2.5 times of normal titanium tube
function	small vol but high effeciency

Water inlet&outlet(PVC Piston)

Gas inlet&outlet connection(copper tube)

titanium welding joint
