Id card printer Zebra P330i Desktop Printer zebra Card Printer

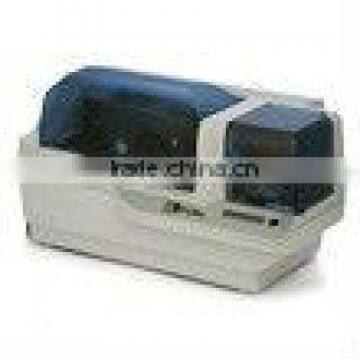

Zebra  P330i Desktop Card Printer

1.Employee ID cards ,Student and faculty ID cards ,Access control cards,Membership and loyalty cards

2.Personalized gift cards ,Visitor ID cards,Government licenses

The most reliable & expandable  card printer in its class The Zebra® P330i is Zebra’s most popular card printer, with tens of thousands of printers installed worldwide. Designed and built for demanding environments, the P330i printer delivers reliability and performance for high-volume card production. Expansion options for networking and card encoding-including UHF Gen 2 for longer read range-give the P330i the flexibility to meet your specific requirements. Affordable and easy to use, the Zebra P330i is a leader in performance card printers. For monochrome- only printing applications and personalization, choose the P330m printer for a lower-cost alternative.

P330m Card Printer Offering monochromatic only card printing, the P330m is the most cost effective solution for your personalization and monochrome printing applications.

General Specifications

• 16-character LCD display

• Windows® drivers: 2000, XP, Server 2003; Vista

• Bi-directional driver communication

• Two year printer warranty

• Two year (unlimited passes) original printhead warranty

Printing

• Color dye sublimation or monochrome thermal transfer printing

• 144 cards per hour full color single-sided (YMCKO) (P330i)

• 692 cards per hour (monochrome)

• 300 dpi (11.8 dots/mm) print resolution

• Two year (unlimited passes) original printhead warranty  Based on average print count per card, under certain conditions.

Bar Codes

• Code 39, Code 128 B & C with & without check digit

• 2-of-5 & 2-of-5 Interleaved

• UPC-A, EAN 8 & EAN 13

• PDF417 2-D bar code and other symbologies can be printed via Windows drivers

Card Specifications

• Types: PVC, Composite, Adhesive backed

• Card width/length: ISO CR-80-ISO 7810,  2.12"/54 mm x 3.38"/86 mm

• Magnetic Stripe-ISO 7811 • Smart Card contact and contactless

• Card thickness: 10 mil (.25 mm) to 60 mil  (1.524 mm) (+/- 10%)

• Card feeder capacity: 100 cards (30 mil) or  220 cards (30 mil)

• Card output hopper capacity: 100 cards (30 mil)

Communications Interface

• USB 1.1 (USB 2.0 compatible) cable included

• Optional Built-in 10/100 Ethernet

Ribbon Specifications

• i Series™ printers require the use of i Series  ribbons for full color printing (P330i)

• YMCKO: 200 & 330 cards/roll (P330i)

• 1/2 Panel YMC Full KO: 450 cards/roll (P330i)

• KdO and KrO: 500 cards/roll (P330i)

• Overlay varnishes: Clear and Hologram:  350 cards/roll

• Monochrome: 1500 (Black) & 1000 cards/roll

• Monochrome colors: black, red, blue, green,  silver, gold, white and scratch-off grey

• For optimum printer performance use  genuine Zebra supplies Card Specifications

• Types: PVC, Composite, Adhesive backed

• Card width/length: ISO CR-80-ISO 7810,  2.12"/54 mm x 3.38"/86 mm

• Magnetic Stripe-ISO 7811

• Smart Card contact and contactless

• Card thickness: 10 mil (.25 mm) to 60 mil  (1.524 mm) (+/- 10%)

• Card feeder capacity: 100 cards (30 mil) or  220 cards (30 mil)

• Card output hopper capacity: 100 cards (30 mil) Communications Interface

• USB 1.1 (USB 2.0 compatible) cable included

• Optional Built-in 10/100 Ethernet Ribbon Specifications

• i Series™ printers require the use of i Series  ribbons for full color printing (P330i)

• YMCKO: 200 & 330 cards/roll (P330i)

• 1/2 Panel YMC Full KO: 450 cards/roll (P330i)

• KdO and KrO: 500 cards/roll (P330i)

• Overlay varnishes: Clear and Hologram:  350 cards/roll

• Monochrome: 1500 (Black) & 1000 cards/roll

• Monochrome colors: black, red, blue, green,  silver, gold, white and scratch-off grey

• For optimum printer performance use  genuine Zebra supplies

Mechanical

• Width: 18.2"/462 mm

• Depth: 9.4"/239 mm

• Height: 10.1"/256 mm •

 Weight: 15.5 lbs/7.0 kg

Electrical

• 100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)

• 20 MB image memory standard

• FCC Class A, CE, UL, CUL, and CCC approved

Environmental

• Operating Temperature: 60°F/15°C to 86°F/ 30°C

• Operating Humidity: 20% to 65% non-condensing

• Storage Temperature: 23°F/ -5°C to 158°F/ 70°C

• Storage Humidity: 20% to 70% non-condensing

• Ventilation: Free air

Options

• Built-in 10/100 Ethernet

• Gen 2 UHF RFID Encoder-ISO 18000-6C

• Smart card contact-ISO 7816 encoder  (30 mil cards only)

• Smart card MIFARE®/DESFire® encoder (30 mil cards only)

• Smart card contact station (30 mil cards only)

• Magnetic encoder (30 mil cards only)  3 track HiCo/LoCo

• High capacity feeder (220 cards)
