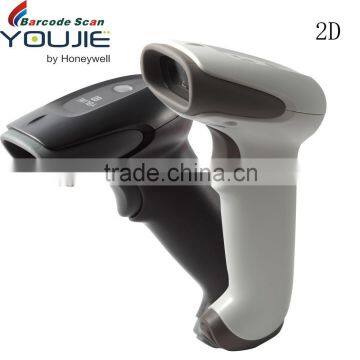

Cheap USB handheld Youjie YJ4600 qr code scanner

  YJ4600 is a general purpose area imaging scanner targeting low to middle segments of the 2D market. With competitive pricing, outstanding performance, ergonomic design, and optimal functionality, it meets the demands of a wide variety of applications .

Features

• Cost-effective: Competitive pricing, outstanding performance
• Compact, lightweight, user-friendly design: Fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip
• Versatile scanning modes: : Supports both manual and presentation scanning modes with automatic object detection and scanning
• Advanced decoding software: Cutting-edge decoding technology, able to scan both 1D and 2D barcodes quickly and accurately
• Reliable data capture ability: Supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
• Future-proof investment: Protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs

Mechanical

Dimensions (length x width x height): 170mm x 66mm x 85mm
Weight: 120g

Electrical

Input Voltage: 4 ~ 5.5 V DC
Operating Power: 2W; 400 mA @ 5V - typical
Standby Power: 0.45w, 90mA@ 5V - typical
DC Power: Class2; 5.2VDC@1°
EMC: EN55022, EN55024 class B
LED Safety Certification: IEC62471
CB: IEC60950
Comprehensive Certification: GOST-R (Russia), CE

Environmental

Operating Temperature: 0°C - 40°C
Storage Temperature: -40°C - 60°C
Humidity: 5% - 95% relative humidity, non-condensing
Light Levels: 0 - 100,000LUX
Drop: designed to withstand falls from a height of up to 1.0m
Environmental Sealing: Sealed to resist airborne particulate contaminants
IP Level: IP40
Motion Tolerance: 100mm per second, 13 mil UPC

Performance

Light Source: white LED
Sight: Red LED, 617nm
Visual Indicators: Green = decoding successful; Red = decoding failed
System Interface: KBW, USB
Scan Pattern: Image
Scan Angle: Pitch ± 70 °, Tilt ± 60 °, Rotation ± 180 °
Print Contrast: Minimum 35% contrast
Decoding: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
