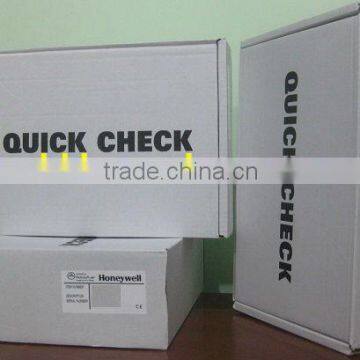

Honeywell QC800 Hand Held Products Quick CheckQuick Check QC800 Bar code Verifier

Specifications

Honeywell Hand Held Products Quick Check QC800 Bar code Verifier

Honeywell Hand Held Products QC800, QC810 and QC850 models perform quick pass/fail tests or use more powerful measuring tools for highly details analysis. Test results are provided through a 4 line by 20 character LCD, light emitting diodes, and audible tones. The unit is also RS-232 compatible and works with the QCVIEWER II-6/8 Windows®-based verification software package. The Honeywell / Hand Held Products QC800 Series Bar Code Verifier offers the convenience of simple aim-and-shoot verification through the use of a QC3800V, a customized, IT3800 hand held imager. Quickly perform pass/fail testing of dimensional and format quality parameters like average bar deviation, wide-to-narrow ratios, encodation, and ISO/IEC decodability. Also, full traditional and ISO/IEC dimensional, reflectance, and format tests can be performed using optional mouse and pen style.

The Honeywell / Hand Held Products QC800 enables portable or desktop verification for simple linear screening to complete ISO/IEC compliance.

 Features Special reflectometer mode
“X” dimension determination
Data buffer (code content dependent)
Single Scan To Result (SSTR) menu
Command code programming
ANSI/CEN/ISO scan profile test method
Instant “On-Screen” ANSI / CEN / ISO grade
ANSI/CEN/ISO 10-scan grade averaging
Verification Methods
Parameters determined by ANSI-CEN-ISO bar code print quality guidelines and traditional pass/fail criteria. Refer to model matrix below for configurations.
QC 6xx QC8xx*
ANSI/CEN/ISO X X
Traditional X X
* QC800 Series verifiers include a handheld bar code linear imaging reader and provide ANSI/CEN/ISO decodability/decode and dimensional traditional test results.
Full ANSI/CEN/ISO results are provided using an optional mouse or pen wand.
To complete the QC600 & QC800 series model number configuration above, substitute XX with either 00, 10, 20, 30, or 50 from the list below. (For example, the retail
version of the QC600 series verifier = QC610.)
00 = Symbologies only, no applications
10 = Retail
(SCC retail shipping-UCC/EAN ITF, UCC/EAN 128; UPC Coupon Code; SISAC; Bookland)
20 = Healthcare
(HIBCC; CCBBA; SCC retail shipping-UCC/EAN ITF, UCC/EAN 128)
30 = Industrial / Government
(LOGMARS; AIAG; ABCD/CTIA; SCC retail shipping-UCC/EAN ITF, UCC/EAN 128)
50 = All industry applications
(SCC retail shipping-UCC/EAN ITF, UCC/EAN 128; UPC Coupon Code; AIAG; LOGMARS; HIBCC; SISAC; CTIA/ABCD; Bookland;
CCBBA)
Dimensions
Height: 2.8 in. (7.0 cm)
Width: 4.3 in. (10.9 cm)
Length: 5.3 in. (13.3 cm)
Mechanical
Weight: 16 ounces (454 g)
Power: 4 AA rechargeable NiCad batteries and AC charger
Case: Lexan polycarbonate 141
Beeper: A single beeper provides an audible valid/invalid signal and a triple beep on known out of spec codes
Display: 4 line X 20 character LCD
Keypad: 6-button, power, select (4 arrows)
LEDs: 5 tri-colored LEDs
Environmental
Operating Temperature: 32 to 122° F (0 to 50° C)
Storage Temperature: 14 to 158° F (-20 to 70°C)
Relative Humidity: 5% to 95% Non-condensing
Optical
When ordering QC600 Series verifiers, choose a mouse wand or pen wand with applicable aperture and wavelength.
Test Aperture: Mouse: 3, 5, 6, 10, or 20 mil
Pen: 5, 6, 10 mil
Linear Imager: min. “X” dimension 5 mil
Wavelength: Visible : 660nm
Infrared : 940nm
Symbologies
EAN/UPC with addenda, Code 39 (1-49 characters), Interleaved 2 of 5 (2-78 characters), Codabar,
Code 128 (1-70 characters), MSI (1-50 characters), Code 16K (individual rows),
Code 49 (individual rows), Code 93, Code 11, Regular 2 of 5 (Discrete/Industrial 2 of 5),
IATA 2 of 5 (Straight 2 of 5), Database look-up feature
Safety/Regulatory
FCC Class A, CE Certified
