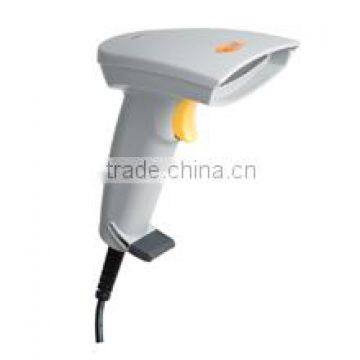

Barcode scanner Argox AS-8120 CCD Barcode reader Argox barcode scanner

Light source

660nm Visible Red LED

Optical system

2048 pixel CCD(Charge-coupled device)

Depth of scan field

150 mm(Code 39, PCS = 90%, 20mils)

Scanning width

75 mm at contact

Scan speed

100 scans/sec

Current - sleep mode

/

Resolution

0.1 mm (4mils) Code39, PCS = 90%, on contact

Print contrast

45% or more (30% programmable)

Scanning angle

Front: 60° ,Rear: 60° ,Yaw: 75°

Decode capability

Auto discriminates all standard barcode;
Other symbologies can be ordered optionally

Cable - universal type

/

Beeper operation

7 tones or no beep

Indicator

Blue LED

Length

182 mm

Width-handle

26 mm

Width-head

90 mm

Depth-handle

49 mm

Depth-head

35 mm

Weight

120 g (cable not included)

Cable - K/B wedge

/

Connector type

RJ-45 phone jack connector

Case material

ABS

Shock resistance

/

Input voltage

5 VDC ± 0.25V

Power - operating

1250mW

Power - standby

300 mW

Current - operating

250 mA @ 5 VDC

Current - standby

60 mA @ 5 VDC

Operating Temperature

0°C to 45°C (32°F to 113°F)

DC transformers

/

Storage

-20°C to 60°C (-4°F to 140°F)

Humidity

5% to 90% relative humidity, non-condensing

Light level

Up to 20000 Lux

Shock

1.5m drop onto concrete

Programming method

Manual (Reading special barcode)
DOS command through RS-232

Contaminants

/

Program upgrade

/

Programmable characteristics

Code type selection, check digit selection decoding option transmitted character delay header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection keyboard emulation type (intermessage delay, keyboard type and keyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED control, start/stop bits)

Agency Listing

FCC, CE, BSMI

Attention

*This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. All trademarks are the property of their respective owners. More specific information, please refer to user’s manual.
