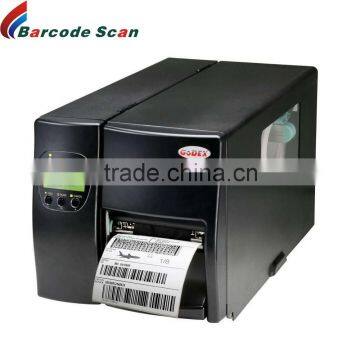

All Metal Industrial Barcode Printer Godex EZ-2300plus

EZ-2300Plus

Print Method
Thermal Transfer / Direct Thermal

Resolution
300 dpi (12 dots/mm)

Print Speed
6 IPS (150 mm/s)

Print Width
4.09" (104 mm)

Print Length
Min. 0.16” (4 mm)**; Max. 180” (4572 mm)

Memory
4MB Flash (2MB for user storage) / 16MB SDRAM

Sensor Type
Adjustable, left aligned see-through sensor and reflective sensor

Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 2” (50.8 mm) Min. - 4.64" (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.
Label roll diameter: Max. 8” (203.2 mm) with 3" (76.2 mm) core / Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
Core diameter: 1" - 3" (25.4 mm - 76.2 mm)

Ribbon
Types: Wax, wax/resin, resin
Length: 1476’ (450 m)
Width: 1.18” Min - 4.38” (3 mm - 110 mm) Max
Ribbon roll diameter.: 2.99“ (76 mm)
Core diameter: 1” (25.4 mm)

Auto ink insede and ink outside

Printer Language
EZPL, GEPL (Godex Eltron® Printer Language)

Software
Label design software: QLabel-IV (for EZPL only)
Driver & DLL: Windows 2000, XP and Vista

Resident Fonts
Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable

Barcodes
1-D Bar codes:

Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar

2-D Bar codes:

PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code

Code Pages
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)

Graphics
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces
USB port

Serial port: RS-232(DB-9)

Ethernet 10/100Mbps print server (default off; disables USB when in use)

CF Card socket

Control Panel
Backlit graphics LCD display: 128 x 64 dots or 4 lines x 16 characters

Three mono-color status-LEDs: Power on, Ribbon out, Media out

Control keys: FEED, PAUSE and CANCEL

Real Time Clock
Standard

Power
Auto Switching 100-240VAC, 50-60Hz

Environment
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals
CE(EMC), FCC Class A, CB, cUL, CCC

Dimension
Length: 20.15" (512 mm)
Height: 11.45” (291 mm)
Width: 10.78” (274 mm)

Weight
33 lbs (15Kg), excluding consumables

Options
Cutter Module

Internal Rewinder
Parallel port (Centronics 36-pin), and PS2 port
Applicator Interface (1 input, 3 outputs, power 500mA @ 5V)
External label rewinder

802.11 b/g wireless print server (Default off; disables USB when in use. Must remove Ethernet card to install)
