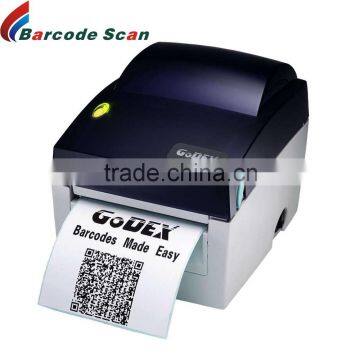

Simple very compact and reliable Godex EZ-DT4 barcode printer

Print Method
Direct Thermal

Resolution
203 dpi (8 dots/mm)

Print Speed
4 IPS (102 mm/s)

Print Width
4.25” (108 mm)

Print Length
Min. 0.16” (4 mm)**; Max. 68” (1727 mm)

Memory
4MB Flash (2MB for user storage) / 8MB SDRAM

Sensor Type
Fixed, center aligned see-through sensor, adjustable reflective sensor

Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.008” (0.20 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25.4 mm, 38.1 mm)

Printer Language
EZPL, GEPL (Godex Eltron® Printer Language), GZPL (Godex Zebra® Printer Language)

Software
Label design software: QLabel-IV (for EZPL only)
Driver & DLL: Windows 2000, XP and Vista

Resident Fonts
Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable

Barcodes
1-D Bar codes:

Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar

2-D Bar codes:

PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code

Code Pages
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)

Graphics
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces
USB port

Serial port: RS-232(DB-9)

Control Panel
One Tri-color LED: Power (Green, Orange and Red)
Function Key: FEED

Real Time Clock
Standard

Power
Auto Switching 100-240VAC, 50-60Hz

Environment
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals
CE(EMC), FCC Class A, CB, CCC

Dimension
Length: 8.58” (218 mm)
Height: 6.53" (166 mm)
Width: 6.61” (168 mm)

Weight
3.3 lbs (1.5Kg) ,excluding consumables

Options
Parallel port (Centronics 36-pin)
Ethernet 10/100Mbps print server (default off; disables USB when in use)
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
