RS-232 and USB Desktop Argox Barcode Printer Argox OS-2140

FOB Price

Negotiable / Piece

2 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Other, Direct Thermal / Thermal Transfer
Style	Black And White	Use	Barcode Printer
Interface Type	USB	Max Paper Size	105mm
Black Print Speed	102mm/s	Max. Resolution	203 dpi
Brand Name	Argox	Model Number	OS-2140
Place of Origin	Taiwan, China

Product Description

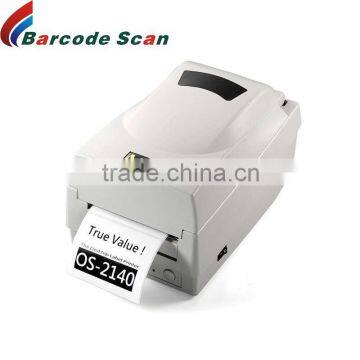

Desktop Argox Barcode Printer Argox OS-2140

Product Description

The OS-2140 thermal transfer printer provides advanced functions and performance in a durable, space-saving design. A rapid print speed of 4 inches per second ensures increased efficiency and the large 4MB Flash and 8MB DRAM onboard memory handles a broad range of applications. The USB interface ensures compatibility with a variety of computers and other devices. Other improvements include much quieter printing compared with other printers in this class.

The printer’s durable, high-impact ABS housing and all-metal print mechanism assure years of dependable performance. The printer supports 1D/GS1 Data Bar, 2D/Composite codes and QR barcodes.

Style, ease-of-use, space-savings, price, and printing performance are what define the new OS-2140 thermal transfer printer.

RS-232 and USB interfaces available

Durable and easy maintenance : only 8 screws disassemble entire unit

Snap-in thermal print head loads in 2 seconds

Easy media loading & ribbon installation

Detachable top cover for kiosk and other special applications

PPLA, PPLB, PPLZ emulations available

Support 1D/GS1 Data bar, 2D/Composite codes and QR barcodes

Full range of options :Cutter, stacker, memory card, RTC and standalone keyboard (Argokee)

Ability to download 2-byte Asian fonts

Specifications

Printing method	Direct Thermal & Thermal Transfer
	Printing resolution	203 dpi (8 dots/mm)
	Printing Speed	Up to 4ips (102mm/s)
	Printing Length	Max. 100” (2540mm)
	Printing Width	Max 4.16”(105mm)
	Memory	4MB Flash ROM(2MB user available) 8MB DRAM(6MB user available)
	CPU Type	32 bit RISC microprocessor
	Sensors	Reflective
	Operation Interface	LED indicator (Power/Ready)x 2,Button (Feed) x 1
	Communication Interface	RS-232(Baud rate 2400 ~ 115200 bps), USB
	Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts and 2-byte Asian fonts are downloadable Ability to print any Windows True Type Font easily
	1D Barcodes	PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 DataBar PPLB: Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar PPLZ: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13, UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, Code 128 Auto, UPC/EAN-Extension, Plessey, Industrial 2 of 5 , Standard 2 of 5, Logmars, MSI, Code 11, GS1 DataBar
	2D Barcodes	PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes
	Graphics	PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB Only) PPLZ: GRF, Hex and GDI
	Emulation	PPLA / PPLB / PPLZ
	Software - Utility	Windows Driver (Win 2000/XP/Vista/Windows 7) BarTender, Printer Utility, Font Utility
	Media Type	Roll-feed, die-cut, continuous, fan-fold, ticket in Direct thermal paper
	Media	Max Width:4.33”(110mm) Min Width:1”(25.4mm) Thickness:0.0025”~0.01”(0.0635~0.254mm) Max roll capacity(OD):4.3”(109mm) Core size: 0.5”(12.7mm) (1”(25.4mm) optional)
	Ribbon	Ribbon Width: 1”~4” Ribbon roll – max OD: 1.45”(37mm) Ribbon Length: max 92m Core size – ID: 0.5”(13mm) with notch, Wax, Wax/Resin, Resin (Outside Ribbon)
	Dimensions	W 186mm x H 165mm x L 278mm
	Weight	2.0kgs
	Power Source	Universal Switching Power Supply Input: 100V~240V 1.5A, 50~60Hz, Output: 24VDC, 2.92A
	Operation Environment	Operation Temperature: 40°F~100°F(4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)
	Optional Items	Cutter, Stacker, RTC Card, ArgoKee
	Agency Listing	CE, cTUVus, FCC, CCC,
	Attention	This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. All trademarks are the property of their respective owners. More specific information, please refer to user’s manual.
