SUS304 cartridge heaters for machines

   SUS304 cartridge heaters for machines

1.Specification of cartridge heater

-high-precision electric heating tube -high-resistance alloy wire -better heating exchange

Cartridge heatersare custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases. Tubular heaters are produced using Incoloy, stainless steel or copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.

Cartridge heaters can be used in any application. They can be inserted in machined groves for conductive heat transfer and formed cartridge provides consistent heat in any type of special application. Its applications areas are: Plastic processing machineries; Engineering Industry; Packaging machinery; Shoe making machineries; Foundry Equipment; Radiant Surface heating; Hot Runner Mould Systems etc.

2. Technical Detail of cartridge heater

- Tube diameter: Φ3mm-Φ30mm

-Tube Material:SS304;SS316,SS321,NICOLOY800 etc

-Insulation Material:High-purity Mgo

- Reisistance wire element:Ni-Cr or FeCr

- Lead Connection Option: Crimped or Swaged leads

- Lead and type of connection leads, 10" Fiberglass Standard(Wire options,silicone high temperature frberglass).

3.Feature of cartridge heater

Commom cartridge can be devideded :

1) High power density (heat area sufuce power 10~25w/cm2)

Working temperature≤450 degrees.

2) Middle,low power density (heat area sufuce power 5~11/cm2)

working temperature≤ 300 degrees

Votage:12~250V (or as requirment)

High Density Construction

High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments

Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°C.

4. Applications of Cartridge Heater :

• Liquid Immersion
• Plastic Molds
• Dies
• Labeling
• Medical Equipment
• Platens
• Packaging Equipment
• Hot Stamping
• Sealing
• Injection Molding

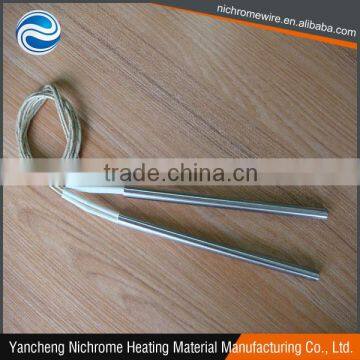

5.Photos of Cartridge Heater

6.Package and Shipping

7.Pls tell us when inquiry:

Element shape.

Wattage and voltage.

Dimention of the tube and tube material.

We will appreciate if you can provide us the element pictures and Drawings.

8.Our Main Products

If you want know more about our products,please feel free contact Joy:
