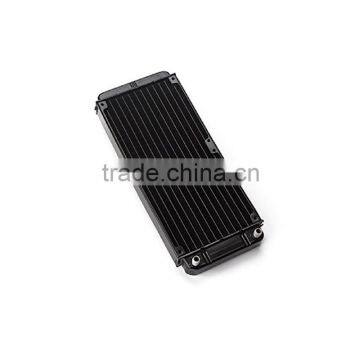

Wholesale OEM ODM Aluminum Computer Heat Sink

Specifications

100% Brand new and High Quality

Four 6MM heat pipe design,
superior thermal performance.

Specification

Fan size:92*92*25mm.
Bearing type:Hydro bearing.
Rated Voltage:12V DC.
Start Voltage:7V DC.
Operating Voltage:10.8-13.2V DC.
Rated Current:0.17±10%A.
Input Power:2.04W.
Fan speed:2000±10% RPM.

Bottom CTT process and improve the efficiency of heat transfer.

9 cm quiet black-rimmed leaf fan, highlight DIY personality.

1.Aluminum Ingot                                       2.Extrusion                                   3.Sandblasting Machine

4.CNC Machinery                                   5.Punch Machinery                           6.CNC Turning Machine

7.Powder Coating                                  8.Load Container

Our advantages

We have have 99 CNC machines,40 punching machines,30 drawbench machines and other advanced equipment. Our engineering team members are 6 young men that are full of passion and experience in mechanical and mechatronic design, product development. Their professional engineering knowledge enables them to provide the best technical supports, to fulfill every need of the customer. Please do not hesitate to contact us if you have any enquiry, we are providing the best service and most competitive price.

 Please provide your 2D or 3D drawing with details as below:

1. Type of material                        2. Quantity of the product

3. Part application                        4. Drawings, samples or pictures with details

                                                               1                 2                   3                  4                   5                  6                   7

                1.Anodized                 2.Powder coating                    3.Polishing              4.Sand blasting

                      5.Laser                       6.Electrophoresis                    7.Oil painting

Q1: What are the advantages of using the 6000 series of alloys in aluminum extrusions?

A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability,

strength, corrosion resistance, formability and machinability -- which explains why it’s also

JJT’s alloy of choice for all our aluminum extrusions.

Q2: If I wish to send an electronic drawing to you, what types of files can you accept?

A: We accept many file formats such as DXF, DWG and IGES.

Q3: Why do extrusion companies always ask me to sign off on a drawing before they can

order tooling if I’ve already provided a drawing?

A: Oftentimes, we find a few key dimensions that are missing from the original drawing

that need to be clearly identified. Other times, we have taken exception to a tolerance,

dimension, alloy, note, surface condition, etc. It’s just our way of documenting exactly

what we have agreed upon.

Q4: What is the difference between anodized and mill finished?

A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also

known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases

corrosion resistance and weather resistance.

Q5: What About Anodizer Rack Marks?

A: Electrical contact must be made to each part to be anodized. The more electrical

current required, the greater the electrical contact. The size of the contact therefore

depends on the anodizing process and the size of the part being anodized.
