Hydraulic Ceramic Grinders

Specifications

Three roller ginder SYPT

The three roll mill is mainly used for refining high viscosity materials in oil paint, printing ink, color paint and plastic industries.It is especially suitable for processing materials with high viscosity and fineness. The three rolls run at different speeds and  the materials are squeezed into the spaces between different rolls in order to get the grinding and refining effects.

WORKING

SYPT is composed of three horizontally positioned rolls rotating in opposite directions and at different speeds. The materials to be milled is placed between the feed and center rolls and gets transferred from the center roll to the apron roll by adhesion. Milled materials are scraped from the apron mill by a take-off knife. The cycle can be repeated to improve dispersion or until particle size equilibrium is reached. The shear forces between adjacent rolls generate the dispersion. Decreasing the distance between rolls produces greater shear but also reduces throughput.

Advantage:

1. Pneumatic three roll grinding is pollution-free, explosion-proof grade higher, it fits for the high lever of security area even better.

2.It also can be equipped with PLC control system according to the customer requirement. Advanced graphics interface touch control screen makes all operation parameters and machining process visualized, then it can automatically control the roll temperature, speed, pressure and clearance.

3.Roller pressure and clearance adopts electronic control, ensuring the production, monitoring more precise and machining process can be repeated. It also can be equipped with remote control system according to the customer requirement.

WORKING

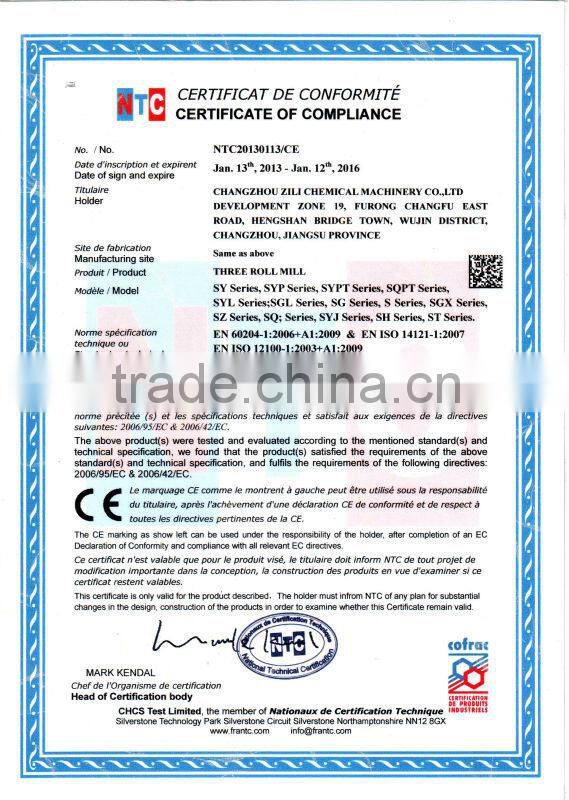

CE

MAIN  CUSTOMER
