ODM/OEM 12v lifepo4 battery

FOB Price

USD $1 - $2,600 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TOPBAND/OEM
Model Number	TB-12300F	Usage	UPS
Voltage	Other, 12v	Sealed Type	Sealed
Maintenance Type	Free	Size	550(L)x380(W)x410(H)mm
Weight	68kg	Nominal Capacity	300ah

Product Description

Specifications

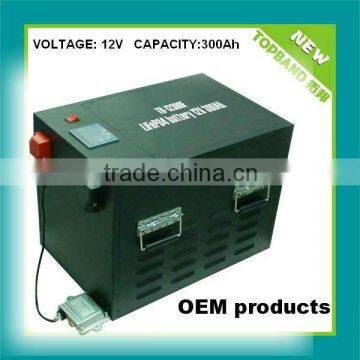

12v lifepo4 battery 300ah
1. LCD display
2. CANBUS protocol
3. BMS built in
4.CE/UL/UN38.3/MSDS

Product Description

PRODUCT SPECIFICATIONS:

Model No.	TB-12300F
Voltage:	12V
Capacity:	300Ah, 3600Wh
Chemistry:	LiFePO
Weight:	11.3lbs (68kg)
Dimensions:	21.8"(L) x 15.2"(W) x 16.2"(H), [550(L) x 380(W) x410(H)]mm
Life Cycles:	2,000 @ 80% DOD
BMS	YES (Internal)
Max Charge Voltage:	14.6V
Discharge Cut-off Voltage:	8.2V
Max Charge Current:	100A
Max Discharge Current:	350A
Operating Temperature:	-22°F to +140°F, (-30°C to +60°C)

Smart lithium 12v battery :

FEATURES:

Fast charge rate
Enables to utilize the narrow space in your equipments
Twice to four times the service life of lead-acid batteries
More lighter than lead acid battery light 1/5 on average
Rectangular battery packing boxes are made of steel which anti-piercing, extrusion and water-resistant
Each battery pack configured with individual battery management system to monitor and control output current, voltage and temperature of batteries
BMS installed in packing box compartment in order to prevent any physical damage to BMS when moving
Available in various sizes
Assembled with LCD display for batteries parameters, the LCD located positin is various.
Configured with communication interface- CANBUS protocol, can be contacted with the commputer.
Environmentally friendly

SAFETY:

• Internal over charge protection.
• Internal low voltage protection.

• Internal short circuit protection.

• Internal cell balancing.

• Internal temperature monitor.

• No presence of toxic substances.

CHARGING:

This battery is intended to be used as a direct replacement for lead acid batteries used in e-vehicles ,e-car systems. It is best for the "SmartEnergy" battery not to be trickle charged but to use advance chargers that turns OFF charging current when the battery is completely charged at 14.6V. TOPBAND sells "Smart" chargers for lithium batteries. Using lead acid chargers that charges up to 16V, along with leaving them ON, will damage the Lithium battery over extended time.

LIFETIME:

• Expected number of charge cycles over 2,000.

• Self-discharge rate only 2% per month.

• Expect 8-10 years of battery life that will reduce your operating cost by half

compared to lead acid.

WARRANTY INFORMATION:

2 Year Full Replacement Warranty

Our Services

SERVICES:

Specificed professional service centre
Quick response to clients' enquiries whithin 24hrs
Exclusive and unique solution can be provided to our clients by our experienced and professional engineers and researchers
Solve the problems be prompt if anything wrong with our products' quality
One-stop shopping by the cooperation from many related departments from TOPBAND,like Motor,Solar,Controller,LED and so on.

NOTE:

This batteries are to be used for energy storage applications and NOT for engine starting applications.Unlimited packs in parallel at 12V.
