Home > Products > Solar/wind battery bank > TB-1215F TOPBAND High Quality LiFePO4 Battery 12v 15ah With PCM Protection for Energy Storage(1500-2000times)

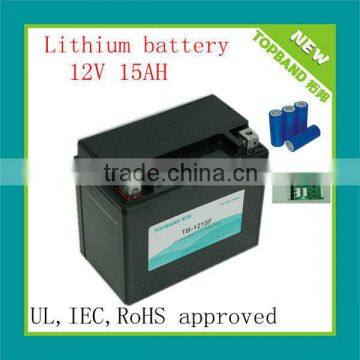

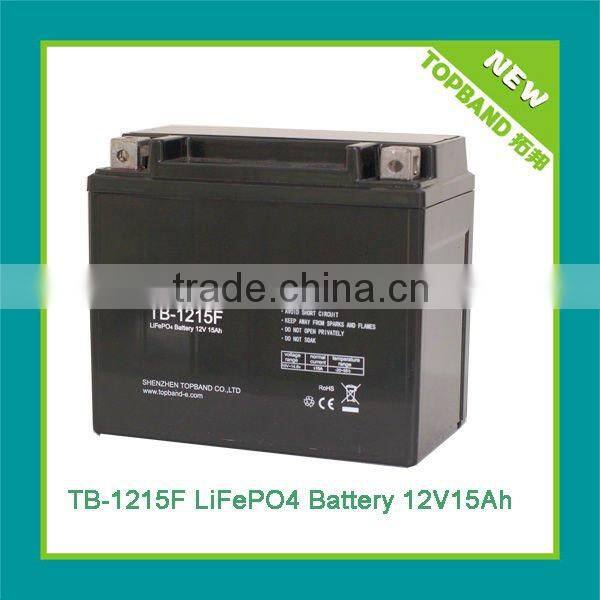

TB-1215F TOPBAND High Quality LiFePO4 Battery 12v 15ah With PCM Protection for Energy Storage(1500-2000times)
- FOB shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Topband | |
| Model Number | TB-1215F | Composed Type | Other, 4series 5parallels | |
| Type | Li-Ion | Components | Other, lithium iron phosphate | |
| Size | 150*86*131mm | Voltage | 12V | |
| Weight | 2.3kg | Nominal Capacity | 15Ah | |
| Application | Emergency lighting,Portable electric appliance,Medical equipments |
Product Description
Specifications
1/3 weight of SLA batteryOEM/ODM in lifepo4
No memory effect
For small electric appliance
CE,UL approved
Details of Topband lifepo4/lithium iron phosphate battery 12V 15H:
| Model: | TB-1215F |
| Type | LiFePO4 battery with PCM |
| Nominal voltage: | 12.8V |
| Typical capacity | 15Ah |
| Internal Impedance(1kHz AC) | <60mΩ |
| Max Charge voltage | 14.6±0.05V |
| Discharger cut-off voltage | 9.2±0.05V |
| Max charge current | 15A |
| Max continuous discharge current | 30A |
| Max pulse discharge current | 45A (2s) |
| Charging temperature | 0°C~45°C |
| Discharging temperature | -20°C~60°C |
| Storage temperature | -20°C~45°C |
| About 2000 cycles to 80% with 100% DOD under 20 °C~25°C | |
| Size(L*W*H) | 150*86*131mm |
| Weight: | approx.2.3kg |
| Application:Auto start battery,e-wheelchair,UPS,Portable electric appliance,Medical equipments and so on. | |
| We can offer model: 12V 13Ah | |
Topband is OEM in lifepo4 battery,looking forward to your enquiry of our products.Sincerely hope we can be good partners in lithium Industry.
Advantages
1>Fast charging
Can loading 90% capacity in 20min
2>High rate discharge
10C discharge ratio at normal temperature≥95%*0.5C discharge
3>Excellent performance at H-L temperature
Discharge capacity ratio at -20°C/0.2°C≥75%(discharge capacity at 25 ≥ /1C)
Discharge capacity ratio at -40°C/0.2°C≥60%(discharge capacity at 25 ≥ /1C)
4>Long cycle life
Capacity remaining after 2000 cycles ≥ 80% of initial capacity at 100% DOD
5>Low Impedance
Impedance of 20AH cell with welding process can be controlled within 2.5mΩ
6>Single battery cell ac impedance ≤2.5mΩ
7>High energy density
Normal energy density ≥115Wh/kg,High energy density ≥125Wh/kg
8>Low self-discharge
Storage :28 days at 20°C,Capacity remaining ≥95%
Storage :55 days at 55°C,Capacity remaining ≥95%
9>High safety
10>IEC62133 and UL1642 safety test approved
Application

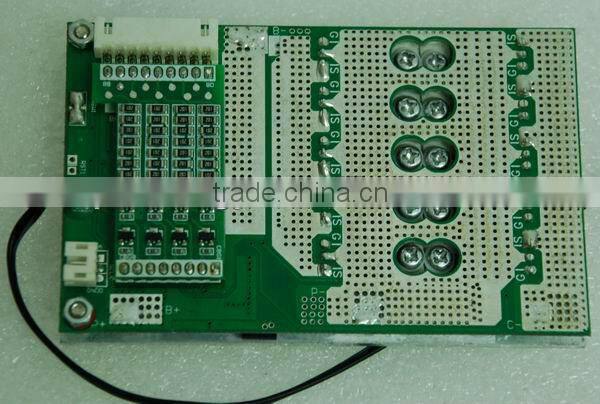

PCM board
Warehouse
Location
Contact Us
- Shenzhen Topband Co., Ltd.
- Contact nameJerry Yang Chat Now
- Phone86-755-27651888
- AddressTopband industry park,Tangtou Town,Bao'an District,Sheznzhen,China, Shenzhen, Guangdong
