Hot Solar Battery!!! Portable 12V 80Ah Lithium ion Solar Battery with Solar Controller

Specifications

Small portable solar power system

Feature:

1. It is a integrated design of 12V80Ah battery pack with BMS and solar controller.

2. There are a variety of functions to choose:

L0: Solar controller only controlled by the sunlight. When there is sunlight, the controller close output and recharge the battery. When there is no sunlight, the controller will provide output and start timing for 4/6/8 hours. When reahing time, shut down output.

L1: Electric quantity control, when the electric quantity is normal, the same as L0; when the electric quantity is low, calculate the lighting hours according to the electric quantity.

L2: 4 hours delay, lighting at dusk, goes out 4 hours later.

L3: 6 hours delay, lighting at dusk, goes out 6 hours later.

L4: 8 hours delay, lighting at dusk, goes out 8 hours later.

L5: 10 hours delay, lighting at dusk, goes out 10 hours later.

L6: Lighting at dusk, goes out 6 hours later, and light 1 hour again before dawn.

L7: General mode, the load circuit is always open without effecting by the sunshine, but protection by the controller. It will be cut off and display the error code once abnormal condition occurred.

L8: Always close, the load circuit is force close, the default mode before delivery. Used for assembling.

Advantages:

1. High load current absorptive capacity

2. The circulation service life is long and it need not to maintain

3. Good rechargeable performance

4. Small volume, light weight, easy to carry, is the best partner for tourism, and other outdoor sports.

12V80Ah battery + solar controller+ BMS  integrated TB1280F-A01 parameter is as follows:

Service provided by US:

•  Quick response to clients' enquiries whithin 24hrs

•  Exclusive and unique solution can be provided to our clients by our experienced and  professional engineers and researchers

•  Solve the problems be prompt if anything wrong with our products' quality

About Topband:

•  Shenzhen Topband Co., Ltd is one of the leading electronic manufacturers in China which is founded in 1996. In June 2007, it was listed in Shenzhen stock exchange market. Have passed HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001 system authentication. Certifications:UL,FCC,ETL,CE,RoHS.

Lithium solar controller  12V/24V 10A/15A/20A/30A

Connect with lithium iron phosphate battery

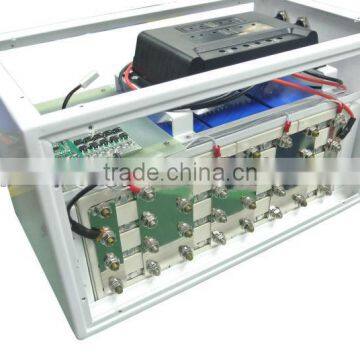

Finished product
