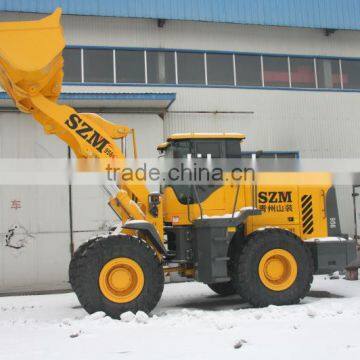

5000kg new type wheel loader
- 2000 Set / Sets per Month
- qingdao
- T/T
You May Like
-
wheel loader 956
-
wheel loader 956
-
SZM1.5t mini Wheel Loader with EPA Engine, Mini Wheel Loader for Sale, Chinese Loader price
-
1.5t mini wheel loader with wood fork and grass fork,CE ,EURO3 engine
-
1.5t mini Wheel Loader with EPA Engine, Mini Wheel Loader for Sale, Chinese Loader price
-
0.8-3.5 Ton Wheel Loader with EPA Engine, Mini Wheel Loader for Sale, Chinese Loader price
Product Details
| Condition | New | Brand Name | szm,szmc,ctk,neo | |
| Model Number | 956 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7836*3010*3300mm | Rated Load | 5000kg |
Product Description
Weichai Steyr diesel engine offers great power and torque reserve and has lower fuel consumption and less noise. The engine has relable performance and is equipped with the standard 2-stage air filter adaptable to the more dusted work sites.
The LG50 power shift planetary transmission is compact and has more durable gears.the new tyepe of vibration damper is used to improve shock absorbing effects.
The selected model is Lingong 5-ton reinforced drive axle featuring outstanding performance and mature technologies. This drive axle has more load bearing capability and higher reliability.
The whole piece of carriage structure has beem through finite element optimization design and 200,000 times of fatigue intensified test. Both the front and rear carriages use the plate-style structure and thus the gravity is well-distributed. It has strong loading capability and rigidity as well as good stability.
| SPECIFICATIONS | |
| Rated capacity | 3m3 |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max. breakout force | 172.6KN |
| Max. drawbar pull | 151.9KN |
| Max. grade ability | 30° |
| Total of three time:lifting,dumping, lowering | 11.3s |
| Max.dump height | 3098mm |
| Max.dump reach | 1198mm |
| Min. ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Pattern | Inline,water cooled, dir.inject,fourstrokees |
| Cylinder-bore*stroke | 6-126*130 |
| Max.torsion | 779Nm |
| Model of engine | STEYR WD10G220E21 |
| Rated power | 220hp |
| Min.fuel consuming rate | 214g/kw.h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element,single stage |
| Number of great shift | 4 forward,4 revers |
| Max.travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering,load sensing meets |
| Steering angle(each direction) | 35°C±1 |
| Min.turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32·2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
| Pressure of working hydraulic system | 160kfg/cm2 |
