Product Details
| Condition | New | Brand Name | szm | |
| Model Number | 956 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7885X3000X3300 | Rated Load | 5000kg |
Product Description

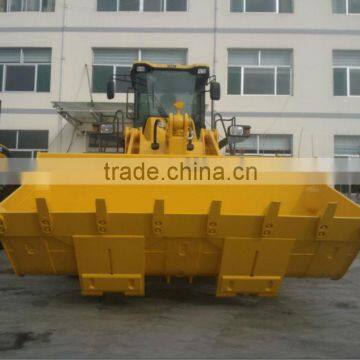

New product 956 wheel loader Steyr engine
| Specification | Rating loading capacity | 5000 kg | Travel speed | Forward 1st gear | 10 km/h | ||
| Bucket capacity | 3 m³(standard bucket) | ||||||
| optional bucket | 2.5m³(rock bucket) ;2.7 m³; | Forward 2nd gear | 34 km/h | ||||
| 3.6 m³ (lightweight bucket) | |||||||
| Dumping height | 3205 mm | Reverse 1st gear | 13 km/h | ||||
| Dumping reach | 1200 mm | ||||||
| Max. lifting height | 4315 mm | Diesel engine | Modl | standard | Steyr WD10G220E11 | ||
| optional | Xichai6110/Deutz | ||||||
| System pressure | 16 Mpa | Rating power | 162 kw | ||||
| Arm lifting time | ≤ 6.5s | Rating rev. | 2200 r/min | ||||
| Arm declining time | ≤ 4.5s | Min. specific fuel consumption | 215 g/kw.h | ||||
| Bucket forward tilting time | ≤ 2.5s | Transmission | type of torque converter | Dual-turbine type | |||
| Breakout force | 154 kN | Stall torque ratio | 4 | ||||
| Min. turning radius(center of outside wheels ) | 5745 mm | Oil pressure of torque converter inlet | 0.3 - 0.45 Mpa | ||||
| Type of Gearbox | Planetary, hydraulic powershift | ||||||
| Working pressure of steering system | 16 Mpa | Oil capacity | Fuel tank | 278 L | |||
| Max. turing angle | 38° | Hydraulic system | 278 L | ||||
| Wheelbase | 3200 mm | Engine oil | 20 L | ||||
| Tread | 2200 mm | Gearbox | 45 L | ||||
| Tyre | specification | 23.5-25 | Axles and final drive | 83 L | |||
| Air pressure | Front 0.32 Mpa Rear 0.28 Mpa | Brake system | 3.52 L | ||||
| Operation weight | 16500kg | Axles | Type of main transmission | Spiral bevel gear | |||
| Dimension | Overall length | 7785 mm | Reduction ratio | 5.286 | |||
| Overall width | 3000 mm | Type of final drive | Spur planetary gear | ||||
| Overall height | 3350 mm | Reduction ratio | 4.26 | ||||
Qing Zhou Shanzhuang Machinery Co., Ltd. (SZM) is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.
We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.
Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc.
Delivery items
1.Delivery time:within 20-30days after receiving the 30%deposit.
2.The shipment port:Qingdao.
3.Manufacturer name:SZM shanzhuang machinery.
4.Minimum Order Quantity :1 set (consider freight)
5.payment terms: --T/T :30% deposit,70%balance before shipping
6.packing:Nude packing.
If you're interested in wheel loaders, please feel free to contact with us. We'll send you our quotation immediately, including PRICE, PICS, SPECIFICATION.
