Home > Products > Network product > 5Port 2.4GHz 500mW high Transmit Power Open-WRT Wireless Router
5Port 2.4GHz 500mW high Transmit Power Open-WRT Wireless Router
- Guanzhou China
- T/T Credit Card PayPal
You May Like
Product Details
| Products Status | Stock | Type | Wireless | |
| Application | Soho | Function | VPN | |
| LAN Ports | 4 | WAN Ports | 1 | |
| Certification | CE ROHS FCC | Brand Name | OEM | |
| Model Number | HW-7620 | Place of Origin | China |
Product Description
5Port 2.4GHz 500mW high Transmit Power
Open-WRT Wireless Router
Introduction
This router is MT7620A chipset based metal case Open-WRT Wireless Router, complies with 2.4GHz IEEE 802.11n standard and with 2 detachable 5dBi omni-directional antennas, Wireless Transmit Power up to 27dBm (500mW), with 1*WAN port , 4*10/100Mbps ports to achieve the most effective data transmission. It has also 1 MICRO SD card slot and 1 USB 2.0 can be expanded to other applications very well.
Key Feature
- Wireless speed up to 750Mbps (2.4GHz 300Mbps)
- Wireless Transmit Power up to 27dBm(500mW)
- 5 * 10/100M Auto MDI/MDIX Ports
- 1 * USB 2.0 (Internal USB available)
- 1 * Micro SD slot
- Support Mutiple Security Settings
Product Specification
Hardware | |
Main Chipset | MT7620A |
Memory | DDR2 128MB (DDR2 256MB Max.) |
SPI FLASH | 16MB(16MB Max.) |
Protocol | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac |
Wireless Transmit Power | 802.11g 27dBm±2dBm |
Receiver Sensitivity | 802.11b: -83dBm@10% PER |
Channel | 2.4GHz: Channel 1-13 |
Wireless Speed | Up to 750Mbps |
Frequency Range | 2.4GHz, 5.8GHz |
Antenna | 5dBi External antenna x 2 |
Interface | USB 2.0 * 1 (Internal USB available) |
LED | Power,WPS,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
Button | WPS |
Reset | |
Power Consumption | < 5W |
Dimension | 217*135*31.7MM |
Software | |
WAN Access | PPPoE,Dynamic IP,static IP |
Work Mode | AP |
DHCP Server | DHCP Server |
Virtual Server | Port Forwarding |
Security Settings | Client Filter |
DDNS | Support |
VPN Pass-through | Support |
Bandwidth Control | Support |
Static Routing | Support |
System Log | Support |
Others | |
Environment | Operating temperature -20oC~55oC |
Power Supply | 12V 1A |

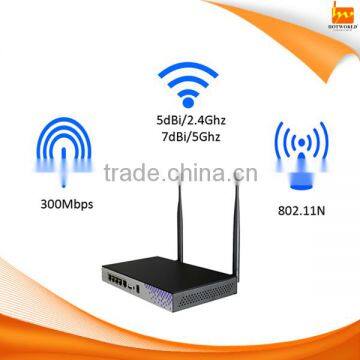

Product Pciture
