Home > Products > Metal Framing System > Beam Clamp
Beam Clamp
- SHANGHAI/NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | RLB | |
| Model Number | Beam Clamp | Usage | Heavy Duty | |
| Material | Other, Cast Malleable Steel | Structure | Suspension Clamp |
Product Description

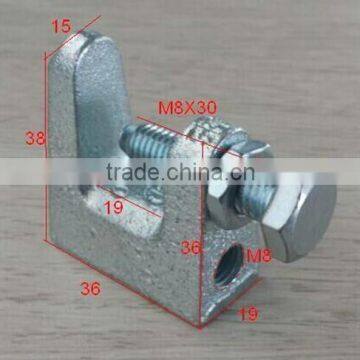

Malleable Iron Beam Clamp
Cast Malleable Steel/Carbon Steel/Ductile Iron
hardened steel screw, zinc-plated,
Rod Size: M8~M12
Beam Clamp
1. Material: Cast Malleable Steel with hardened cup point set screw and jam nut;
2. Finish: Electro-galvanized finish for enhanced corrosion protection,
Available in hot dip galvanized fi nish (special order);
3. Features: May be used on top or bottom flange of the beam. Beveled lip allows hanging from top flange where clearance is limited. may be installed with the set screw in the up or down position. Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp. The rear window design permits inspection of thread engagement;
4. Function: For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position;
5. Note: Do not over tighten set screw.
