Home > Products > 5 Ton Wheel Loader > wheel loader zl50 with high quality engine ZF-gearbox joystick pilot air conditoner for exporting

wheel loader zl50 with high quality engine ZF-gearbox joystick pilot air conditoner for exporting

FOB Price

US$ 10,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	SZM
Model Number	956	Place of Origin	Shandong, China
Type	Other, Front Loader, Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	(Long * Breadth * High) 7885X3000X3300	Rated Load	5000kg
Certification	CE	Warranty	18 months or 2000 hours
After-sales Service Provided	Engineers available to service machinery overseas

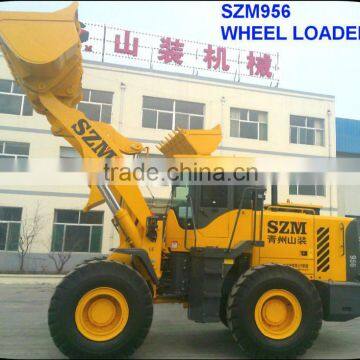

New product 956 wheel loader Steyr engine


Specification	Rating loading capacity		5000 kg	Travel speed	Forward 1st gear		10 km/h
	Bucket capacity		3 m³(standard bucket)
	optional bucket		2.5m³(rock bucket) ;2.7 m³;		Forward 2nd gear		34 km/h
			3.6 m³ (lightweight bucket)
	Dumping height		3205 mm		Reverse 1st gear		13 km/h
	Dumping reach		1200 mm
	Max. lifting height		4315 mm	Diesel engine	Modl	standard	Steyr WD10G220E11
						optional	Xichai6110/Deutz
	System pressure		16 Mpa		Rating power		162 kw
	Arm lifting time		≤ 6.5s		Rating rev.		2200 r/min
	Arm declining time		≤ 4.5s		Min. specific fuel consumption		215 g/kw.h
	Bucket forward tilting time		≤ 2.5s	Transmission	type of torque converter		Dual-turbine type
	Breakout force		154 kN		Stall torque ratio		4
	Min. turning radius(center of outside wheels )		5745 mm		Oil pressure of torque converter inlet		0.3 - 0.45 Mpa
					Type of Gearbox		Planetary, hydraulic powershift
	Working pressure of steering system		16 Mpa	Oil capacity	Fuel tank		278 L
	Max. turing angle		38°		Hydraulic system		278 L
	Wheelbase		3200 mm		Engine oil		20 L
	Tread		2200 mm		Gearbox		45 L
Tyre	specification	23.5-25			Axles and final drive		83 L
	Air pressure	Front 0.32 Mpa Rear 0.28 Mpa			Brake system		3.52 L
Operation weight			16500kg	Axles	Type of main transmission		Spiral bevel gear
Dimension	Overall length		7785 mm		Reduction ratio		5.286
	Overall width		3000 mm		Type of final drive		Spur planetary gear
	Overall height		3350 mm		Reduction ratio		4.26
