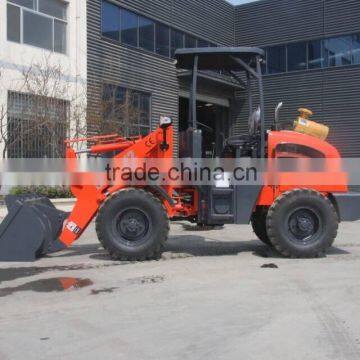

China 1t Mini Wheel Loader for Sale

Specifications

1.0 Engine Details

(1) Model: Changcai 4L68 or Xinchai C490(EURO III)

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 37W

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 269g/kw.h

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-125

(2) System Pressure: 10MPa

(3) Steering Cylinder: Φ76x Φ63x180

3.0 Bucket

(1) Bucket Capacity: 0.5 m3

(2) Bucket width: 1400mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 32KN

(5) Rated Load: 1200kg

(6) Operating Weight: 3200kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4200mm

(2) Overall Height

(a) Ground to Cab Top: 2500mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(c) Dumping Height: 2545mm

(3) Overall Width: 1685mm

5.0 Operating Specifications

(1) Drive Means: Four-wheel drive

(2) Min Turning Radius: 4200mm

(3) Driving System: mechanical

(4) Dumping Height: 2600mm

(5) Min Base to the ground: 240mm

(6) Time of raise: 3.05sec.

(7) Hydraulic cycle time: 9sec.

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tire

(1) Model: 1200-16

(2) Width: 20cm

(3) Diameter: 80cm

8.0 Wheelbase: 2040mm

9.0 Track: 1320mm

For more about our producrs pls send us inquiry now

Qing Zhou Shanzhuang Machinery Co., Ltd. (SZM) is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.

We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.

Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc.

If you're interested in wheel loaders, please feel free to contact with us. We'll send you our quotation immediately, including PRICE, PICS, SPECIFICATION.
