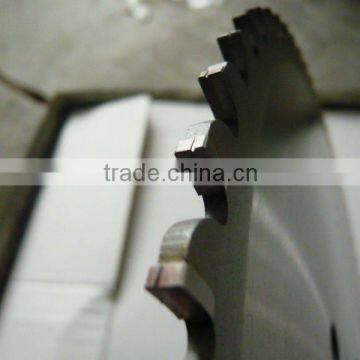

car hud cutting blades

Specifications

 Car hud cutting blades with following specs:

Triple Chip Grind tooth design cutting hard work piece as non-ferrous materials(aluminum,brass,copper,magnesium etc)

High teeth count/fine pitch for burr-free smooth finish.

Expansion/cooling slots are available for expansion and contraction of the tool in the course of cutting.

Low hook angle allows for easy feeding & big teeth for resharpening and longer tool life.

 This sawblade is featured also by the high quality TCT teeth(K20 equivalent) and heat-treated SK5 or AISI C1066 slim plate , CNC teeth & plate grinding, and strict DIN tolerance standard.

 Theoretically, all machined products requires special processes for reducing their residual internal stress to improve the performance and prolong the life. This sawblade is treated with heat and vibratory tresss relief process,dynamic balancing process and dynamic straightening process to optimize the performance and prolong the tool life of the sawblade.

 Strictly conforming to DIN stardands, both static and dynamic balance of the saw blade are better secured.

Technica parameters:

size: 105MM / 125MM / 165MM /185MM / 205MM / 305MM / 355MM X 20T / 24T / 32T / 36T / 40T / 60T / 64T/72T

The Tip material: FumaYG8/Cera/wilke oro same quality Japanses carbide tips

The body material: No. 65Mn or SK51, 75CR1

The body hardness: HRC 42-45

 The saw blade is used for Tubing, Section, Angle Iron & Pipe and so on

 Package: 1. SLIDING CARD

                  2. COLOR BOX

                  3. DOUBLE BLISTER

                  4. VACUUM

7. Delivery time: 15-30 days
