Cheap and fine black woven wire cloth(directly from factory)

FOB Price

USD $0.45 - $5.25 / Square Meter

5000 Square Meters(Min.Order)

Port Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Oushijia
Model Number	OSJ-057	Material	Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type	Wire Cloth	Application	Other, Filter, Filter
Hole Shape	Square	Aperture	0.27-2mm
Wire Gauge	0.15-0.6mm

Product Description

Specifications

black woven wire cloth
1.Material:low carbon steel wire
2.Weave:plain weave and dutch weave
3.Dia:0.15-0.6mm
sh:18x18

Cheap and fine black woven wire cloth(directly from factory) is made of mild steel wire, in plain weave or twilled Dutch weave, also known as low carbon steel wire cloth, mild steel wire mesh.

Material: Super quality low carbon steel wire.

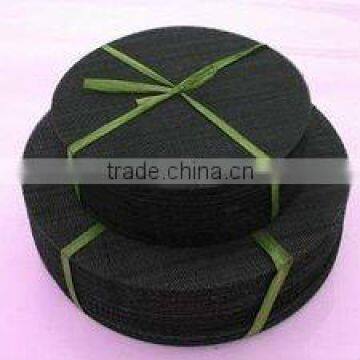

Weaving: Plain or twill woven wire cloth. Can be processed into filter discs of various sizes.Wire cloth pieces in all shapes including, squares, rectangles and circles in all materials and mesh sizes.

Patterns: Plain weave, twill weave, plain Dutch weave and twill Dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.

General sizes: Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.

Uses: Mild steel is excellent for the manufacture of industrial wire cloth due to its tensile strength and impact resistance.

Mesh/Inch	Opening (mm)	Wire Diameter( mm)	Reference weight(kg/ter)
10mesh x 10mesh	1.94	0.6	1.8
10mesh x 10mesh	1.98	0.56	1.56
12mesh x 12mesh	1.52	0.6	2.16
12mesh x 12mesh	1.56	0.56	1.88
18mesh x 18mesh	0.96	0.45	1.82
18mesh x 18mesh	1.0	0.41	1.52
18mesh x 18mesh	1.04	0.37	1.23
18mesh x 18mesh	1.06	0.35	1.1
20mesh x 20mesh	0.86	0.41	1.68
20mesh x 20mesh	0.9	0.37	1.38
22mesh x 22mesh	0.74	0.35	1.33
22mesh x 22mesh	0.79	0.30	0.99
24mesh x 24mesh	0.7	0.35	1.5
26mesh x 26mesh	0.63	0.35	1.66
28mesh x 28mesh	0.6	0.31	1.36
30mesh x 30mesh	0.64	0.31	1.46
32mesh x 32mesh	0.5	0.29	1.36
34mesh x 34mesh	0.47	0.28	1.3
36mesh x 36mesh	0.47	0.28	1.3
38mesh x 38mesh	0.41	0.26	1.1
40mesh x 40mesh	0.39	0.25	1.2
40mesh x 40mesh	0.41	0.23	1.06
40mesh x 40mesh	0.43	0.21	0.88
42mesh x 42mesh	0.365	0.24	1.1
44mesh x 44mesh	0.347	0.23	1.0
46mesh x 46mesh	0.332	0.22	1.0
48mesh x 48mesh	0.319	0.20	0.96
50mesh x 50mesh	0.318	0.19	0.91
50mesh x 50mesh	0.338	0.17	0.72
56mesh x 56mesh	0.248	0.17	0.81
60mesh x 60mesh	0.27	0.15	0.68
