Ozone laundry washer extractor

FOB Price

USD $1,500 - $12,000 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Shanghai Lijing
Model Number	XGQ

Product Description

Product Details

Model: XGQ

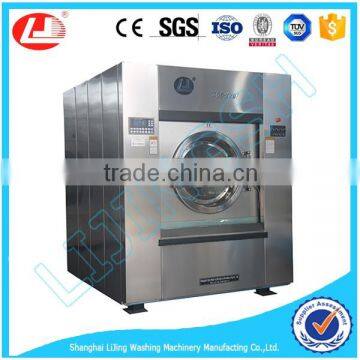

Ozone laundry washer extractor

1. Robust construction. Durable quality stainless steel panel & drum, acid and alkali resistance. corrosion free.

2. Microprocessor control. User friendly and easy programmable. 5 pre set programs and 25 programmable. setting washing period, time, frequency at will. Optional hand operation control.

3. Mechanical suspension shock structure, combination of large diameter spring and hydraulic damper, perfect running , low noise, 100% free-standing.

4. Large door opening makes loading and unloading easy .

5. Integrated Safety door locking system

6. Soap dispensers, corrosion free.

7. Air regulated system for drain and inlet valves.

8. Hot/cold fill. Steam/electric heated. Remote lubricating.

9. Imported CTTO viton seal. Multiple sealing system, oil sealing, water sealing, stainless steel sealing. No leakage.

10. Japanese NSK bearing, precise and durable.

11. Imported Siemens chip inverter system, realizing washing and extracting stepless adjusting.

Specification

Model	Unit	XGQ-15F	XGQ-20F	XGQ-30F	XGQ-50F	XGQ-70F	XGQ-100F
Min washing capacity	kg	10	15	20	40	55	80
Max washing capacity	kg	15	20	30	50	70	100
Drum dimension	mm	Φ700×440	Φ750×500	Φ880×560	Φ990×670	Φ1200×650	Φ1200×850
Drum volume	L	170	221	340	515	734	961
Washing speed	r/min	40	38	36	36	34	32
Middle extract speed	r/min	480	450	400	370	300	300
High extract speed	r/min	850	800	760	730	700	700
Rated voltage	V	110/220/240/380/415/440v
Motor power	kw	1.5	2.2	4	5.5	7.5	7.5
Converter power	kw	1.5	2.2	5.5	7.5	11	11
Water inlet diameter	Inch	1	1	1	1.25	1.5	2
Drain diameter	mm	60	60	76	89	140	140
Washing time	mins	35-55	35-55	35-55	35-55	35-55	35-55
Hot water temprature	°C	70-80	70-80	70-80	70-80	70-80	70-80
Compressed air pressure	mpa	/	/	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Steam pressure	mpa	/	/	0.3-0.5	0.3-0.5	0.3-0.5	0.3-0.5
Steam consumption	kg	8	20	27	45	65	90
Steam lnlet diameter	Inch	1	1	1	1	1	1
Dimension (mm)	L	1050	1200	1400	1500	1800	1850
	W	950	1080	1380	1550	1760	1950
	H	1500	1750	1720	1760	2210	2250
N.W.	kg	400	500	1200	2000	3000
