exhaust gasket sheet heat insulation non asbestos rubber sheet

FOB Price

US$ 1 - 1 / Kilogram

500 Kilograms(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

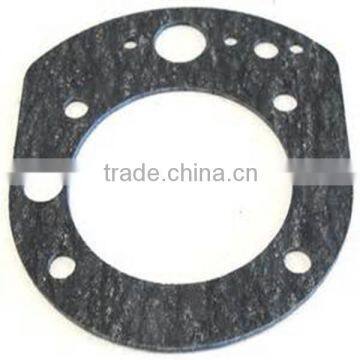

Exhaust Gasket sheet

Product Description

Oil-resisting Asbestos Rubber Sheets with Wire Inserted Physical Property
GB/T 539 - 2008
	Item		NY150	NY200	NY250	NY300	NY400	NY510	NY600
Reference	Density		2.0 g/cm3
	Thickness		0.4 mm - 6.0 mm
	Compressibility		7-17
	Transverse Tensile Strength ≥		9MPa	10MPa	11MPa	12.7MPa	15MPa	18MPa	20MPa
	Stress-relaxation ≤		45						40
	Recovery ≥		35	40	45	50	50	50	60
	Max. pressure		1.5MPa	2.0MPa	2.5MPa	3.0MPa	4.0MPa	5.8MPa	6.0MPa
	Max. temperature ℃		150	200	250	300	400	510	580
	Flexibility		No crack
Oil resisting performance	IRM #903 Normal Oil 150℃ x 5h	Tensile Strength (MPa) ≥	8	8.5	9	10.8	12	15	16
		Change in Thickness (%) ≤	-----	20	20	15	15	10	10
		Change in Weight (%) ≤	23	23	23	23	9	15	15
	ASTM Fuel 8RT x 5 h	Tensile Strength (MPa) ≥	6	6.5	7	7.9	10	12	14
		Change in Thickness (%) ≤	-----	25	25	25	20	15	15
		Change in Weight (%) ≤	22	22	22	22	15	18	18
Nitrogen gas sealability ml/Min ≤ (Q/YSM BJS001-2007)			2.5	2	1.5	1.5	1	0.8	0.5
Oil sealability			No Leakage
Color	Black, Green, Red, Yellow, Blue, Grey or as request
Size	4120mm x 1520mm, 2060mm x 1520mm, 1520mm x 1360mm, 3810mm x 1270mm, 1270mm x 1270mm, 1520mm x 1520mm, 1520mm x 1020mm or as request

Packaging & Shipping

In rolls with plastic bags inside and weave bags outside or with wooden pallets
